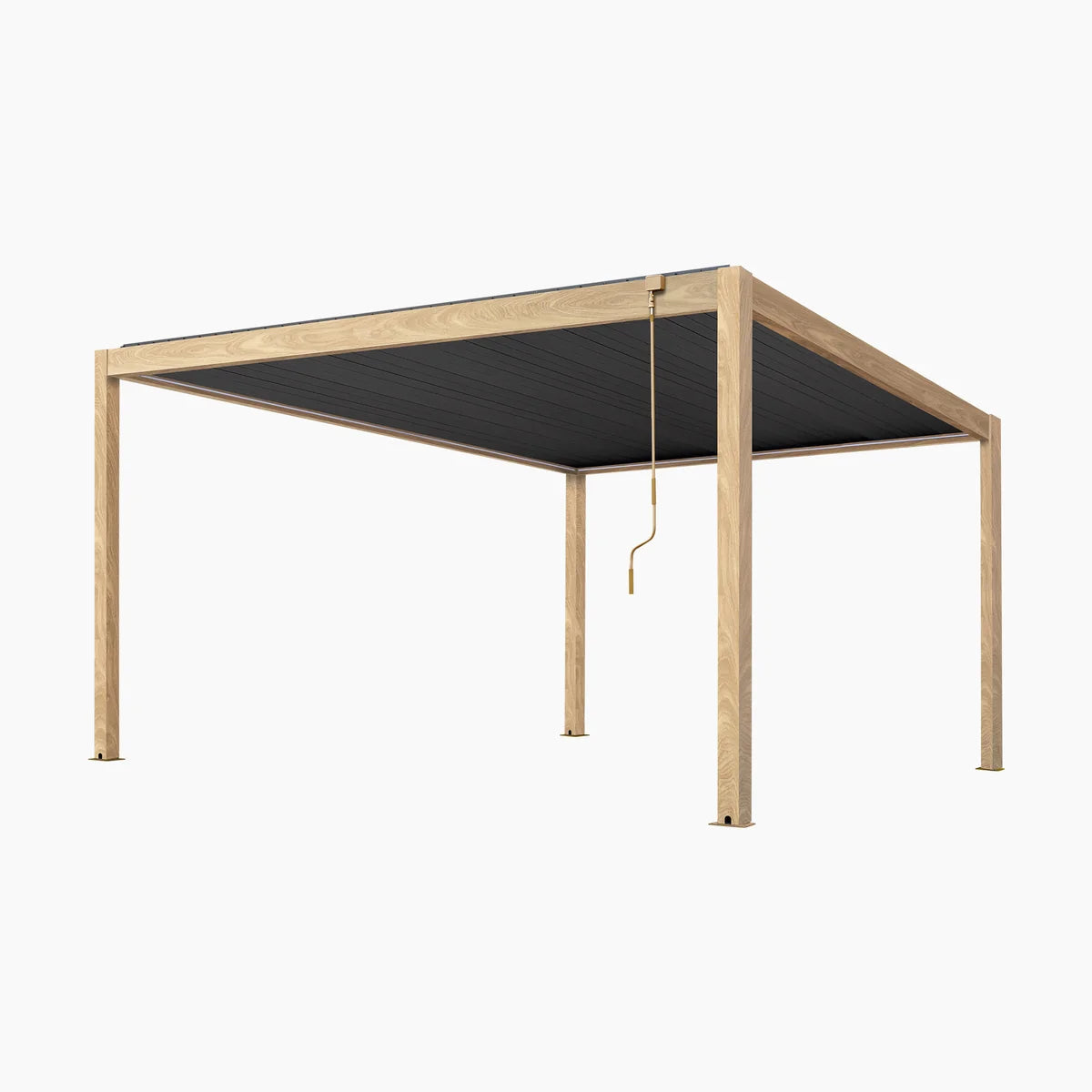

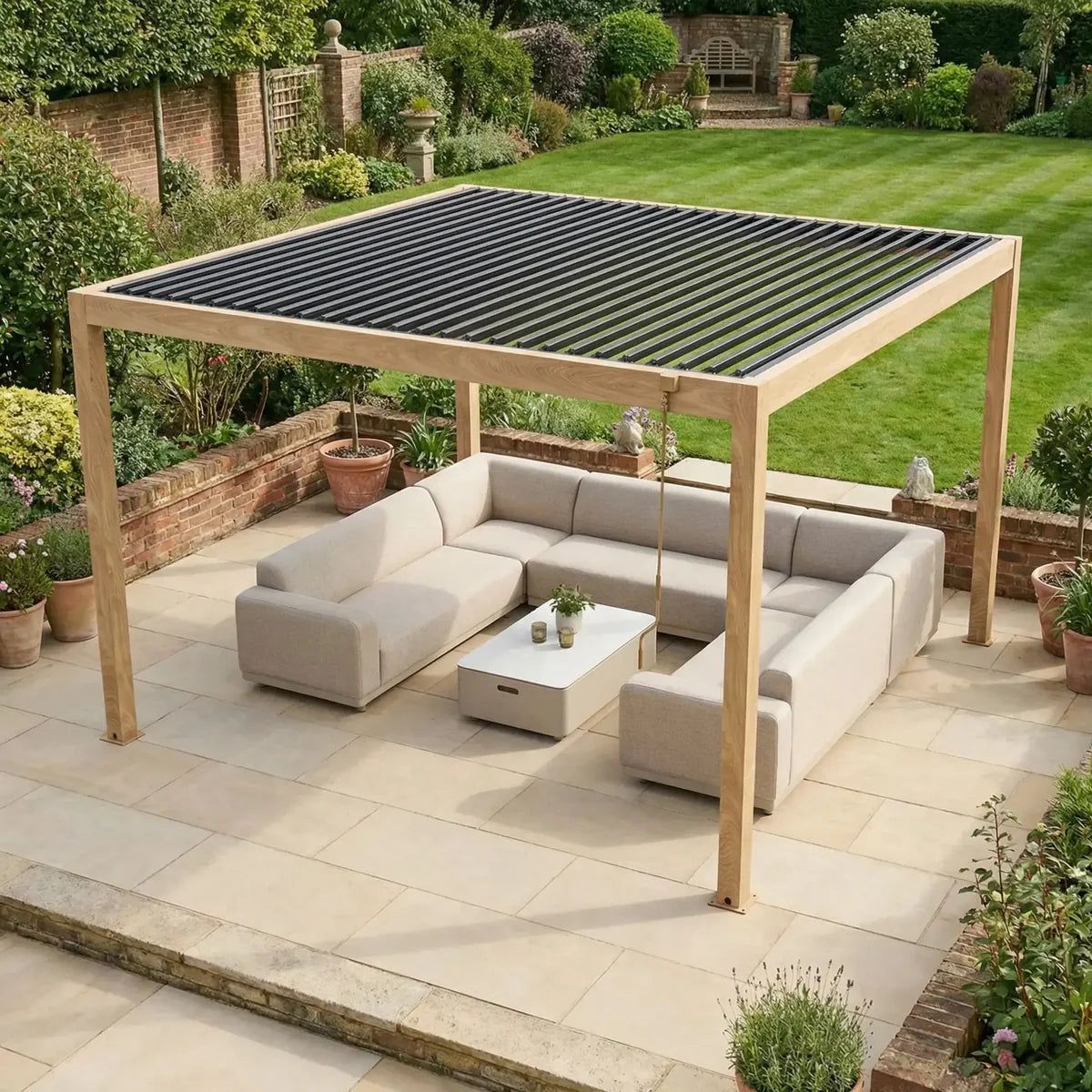

PergoSTET Plus Frame Only 4m x 4m Square Pergola with LED Lighting in Wood Effect

Transform your outdoor living area with an architectural masterpiece that perfectly blends natural warmth with high-performance modern design. The PergoSTET Plus 4m x 4m Square Pergola features a stunning premium wood effect finish, delivering the timeless aesthetic of classic timber alongside the structural durability of heavy-duty aluminum. Engineered for luxury UK properties, this bioclimatic canopy provides an elite, customizable shelter that allows you to transition seamlessly from summer hosting to cozy winter evenings.

Bioclimatic Manual Louvred Roof Control

Command your microclimate instantly using a smooth manual crank handle mechanism. The double-layered aluminum roof louvres tilt up to a full 90 degrees clockwise, giving you the freedom to catch the afternoon sunshine or close the ceiling completely for 100% waterproof protection when unpredictable weather rolls in. This advanced bioclimatic system handles shifting seasonal changes effortlessly, providing a versatile shield for high-end garden lounge settings.

Immersive Remote-Controlled Multi-Colour LEDs

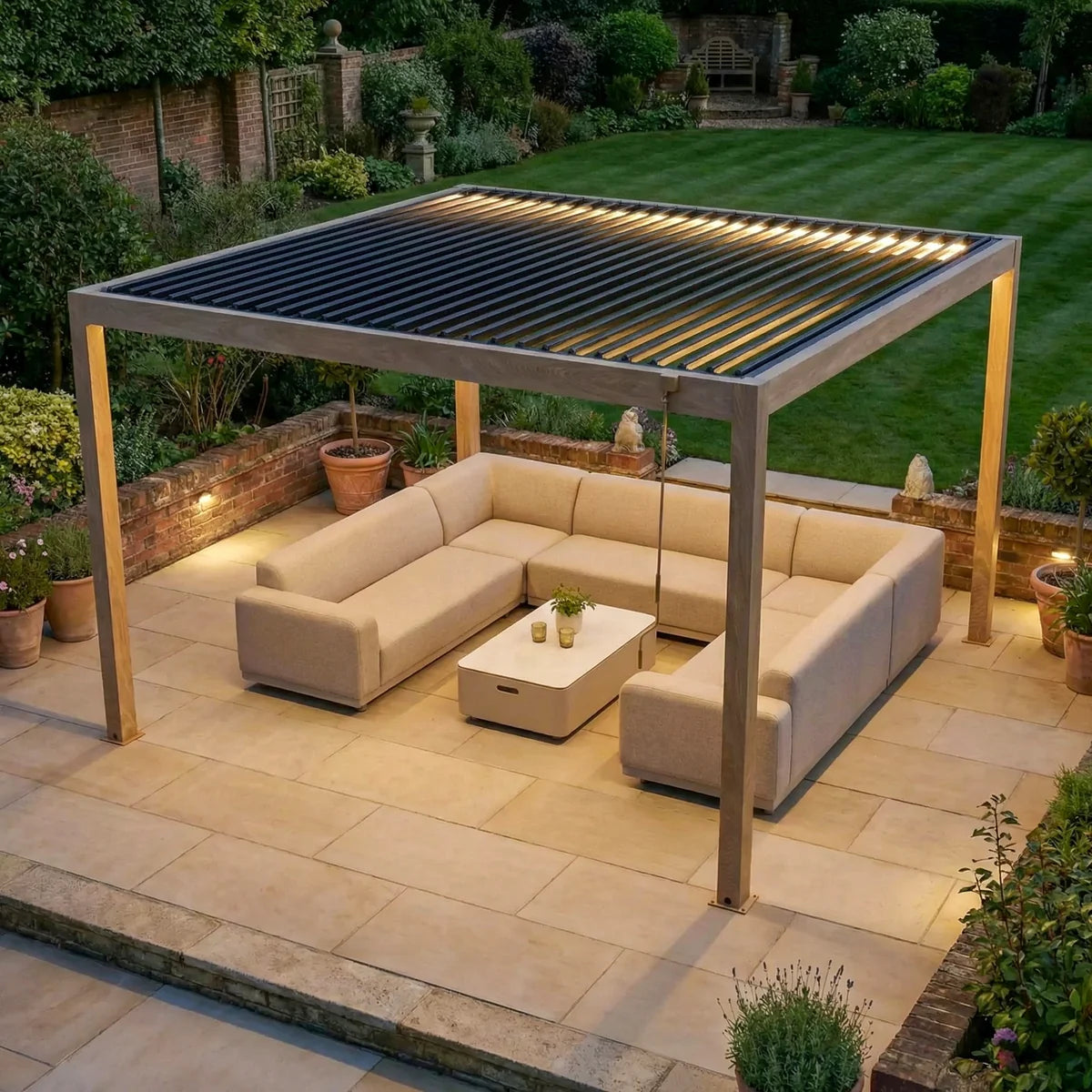

Set the ultimate evening ambiance with an integrated, premium perimeter mood lighting network. Fitted cleanly around the interior gutter system, these high-efficiency LED strips feature a multi-colour RGB controller managed entirely via a wireless remote control. The lighting is completely dimmable, allowing you to seamlessly adjust the brightness and tone from vibrant entertainment lighting to a soft, relaxing glow long after sunset.

Invisible High-Flow Internal Drainage Network

Enjoy heavy rain showers in absolute comfort without worrying about overhead pooling or sudden side drips. Engineered with an intelligent concealed drainage layout, excess rainwater landing on the closed louvres is caught by integrated U-shaped channels. The moisture flows invisibly from the roof louvres into the horizontal perimeter framework, traveling down inside the vertical post legs to exit safely at ground level, ensuring a dry terrace footprint beneath the structure.

Architectural Shielding & Heavy-Duty Durability

Built to withstand demanding outdoor conditions, the high-grade aluminum frame is protected by a genuine Tiger Drylac® powder coating finish. This commercial-grade finish provides outstanding UV, rot, and rust resistance, preventing the wood effect finish from peeling or fading over time. Backed by an exceptional IP68 weatherproofing classification for its electrical connections, the system delivers premium year-round performance with virtually zero maintenance.

Key Features

• Premium Wood Effect Finish: Delivers the luxurious warmth of timber matched with zero-maintenance, rust-proof structural aluminum.
• Tilting 90° Double-Layer Louvres: Operates smoothly via a manual crank handle to switch instantly between open sunlight and a watertight canopy.
• Dimmable RGB Multi-Colour LEDs: Perimeter mood lighting managed via remote control to adjust brightness and custom colour palettes.
• Concealed U-Channel Drainage: Routes rainwater internally through the beams and down the legs to prevent surface pooling.
• Tiger Drylac® Powder Coating: Ensures maximum UV protection and all-weather defense against rot and environmental wear.
• IP68 Electrical Weather Protection: Maximum commercial-grade seal keeps all internal wiring perfectly safe from heavy rain and moisture.

What’s Included

• 1x 4m x 4m PergoSTET Heavy-Duty Aluminum Frame (Wood Effect Finish)
• 1x Complete Tilting Aluminum Louvre Roof Assembly
• 1x Manual Crank Handle Mechanism
• 1x LED Light Fixing Kit (4x Integrated LED Strips & 1x RGB Controller)
• 1x Mains Powered Transformer (24V System with 4m Cable)
• 1x Wireless Lighting Remote Control
• 1x Heavy-Duty Ground Anchoring Bolt Kit

Specifications

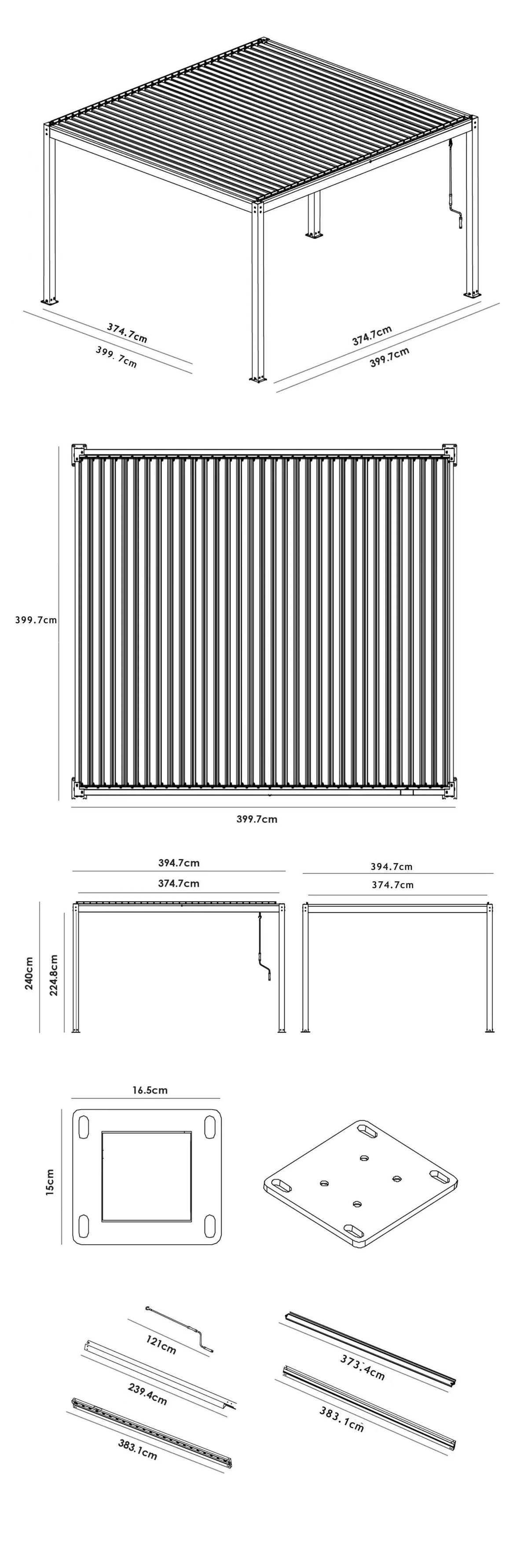

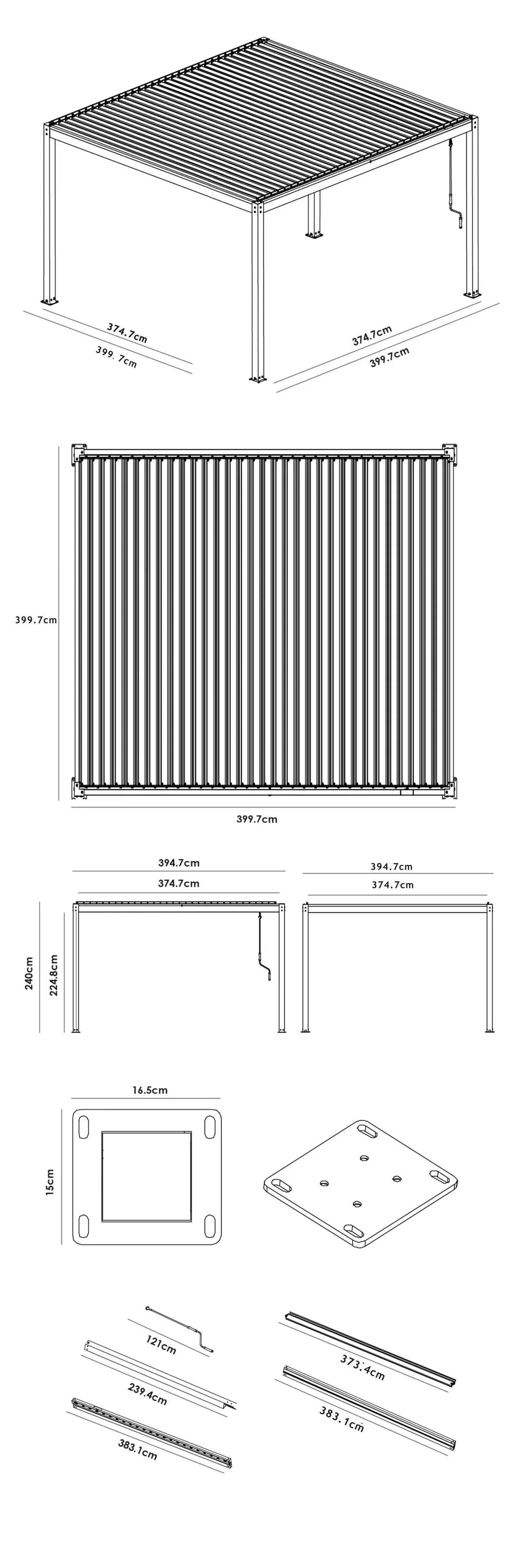

• External Dimensions: Width: 399.7cm | Depth: 399.7cm | Height: 240cm
• Internal Clearances: Internal Width: 374.7cm | Internal Depth: 374.7cm | Internal Height: 224.8cm
• Material Composition: High-Grade Structural Aluminum
• Colour Finish: Premium Wood Effect
• Coating Finish: Genuine Tiger Drylac® Powder Coating
• Structural Shape: Square
• Roof Functionality: Manual Crank Handle Tilting Louvres (90° Rotation)
• Fixing Type: Bolted Anchor Base Plates
• Power Supply Requirements: Mains Powered Transformer (Input Required: 240V Socket)
• System Operating Voltage: Safe 24V Low-Voltage Output
• Electrical Power Wattage: 1500W Element / 150W System Draw
• Water Resistance Rating: IP68 Submersible-Grade Component Seal
• Bulb Configuration: Dimmable Multi-Colour RGB LED Strips

Carton Details & Packaging Weight

• Box 1: W400cm x D25cm x H25cm | Total Weight: 44kg
• Box 2: W292cm x D32cm x H39cm | Total Weight: 41.83kg
• Box 3: W292cm x D32cm x H39cm | Total Weight: 42kg
• Box 4: W256.5cm x D27cm x H24cm | Total Weight: 42kg

Compatibility & Installation Guidelines

• Customisable Enclosure Upgrades: Frame-only profile allows seamless installation of optional pull-down textilene blinds or outdoor space heaters.
• Level Ground Requirement: Must be installed on a level surface (standard 1:80 patio drainage slopes are perfectly acceptable) to ensure the internal U-shaped gutters route water effectively. Steeper slopes will compromise structural alignment and void warranties.
• Mandatory Ground Anchor Anchorage: Once assembled, the feet must be immediately bolted to solid ground foundations using the provided hardware. Leaving the base unbolted risks structural shifting, beam misalignment, and wind hazards.
• Assembly Requirements: Requires 2 to 3 people for safe installation, with an approximate build time of 2 to 3 hours under fair weather conditions.
• High Wind Adaptations: In severe gales or extreme storm conditions, we recommend leaving the louvred roof fully open to prevent dangerous air uplift, and ensuring optional blinds are rolled completely up.

Optional Accessories (Available Separately)

• PergoSTET Pull-Down Privacy Blinds: Seamlessly clip into the main structural beams to enclose the perimeter against drafts.
• High-Output Infrared Beam Heaters: Enhance thermal comfort to keep your terrace cozy during winter evenings.

Warranty

• 3-Year Frame Warranty: Comprehensive guarantee protecting the main aluminum framework against material or structural defects.
• 1-Year Component Warranty: Dedicated coverage protecting the electronic LED strips, louvre tracking mechanisms, and optional blind fabrics.
