PergoSTET Plus Frame Only 4m x 4m Square Pergola with LED Lighting in Grey

PergoSTET Plus Frame Only 4m x 4m Square Pergola with LED Lighting in Grey

£3,799.00
Sale price  £3,799.00 Regular price
Skip to product information
PergoSTET Plus Frame Only 4m x 4m Square Pergola with LED Lighting in Grey

PergoSTET Plus Frame Only 4m x 4m Square Pergola with LED Lighting in Grey

£3,799.00
Sale price  £3,799.00 Regular price

🚚 Free UK Mainland Delivery For Orders Over £150

Free UK Mainland Shipping Orders over £150
Easy Returns Return with Ease
Secure Checkout 100% Secure Payment

PergoSTET Plus Frame. A 4m x 4m square pergola frame for modern spaces. It blends shade, light, and a clean, grey silhouette.

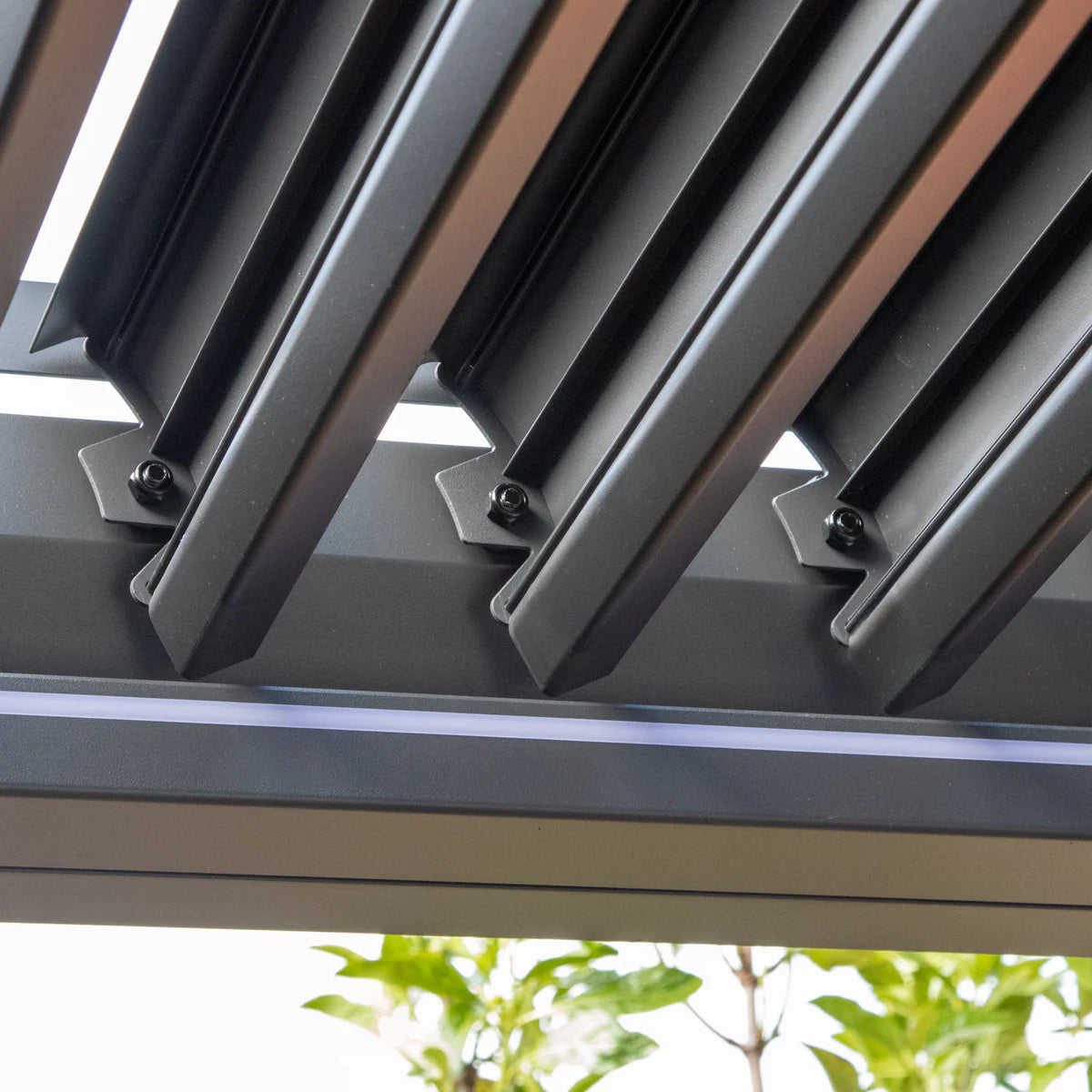

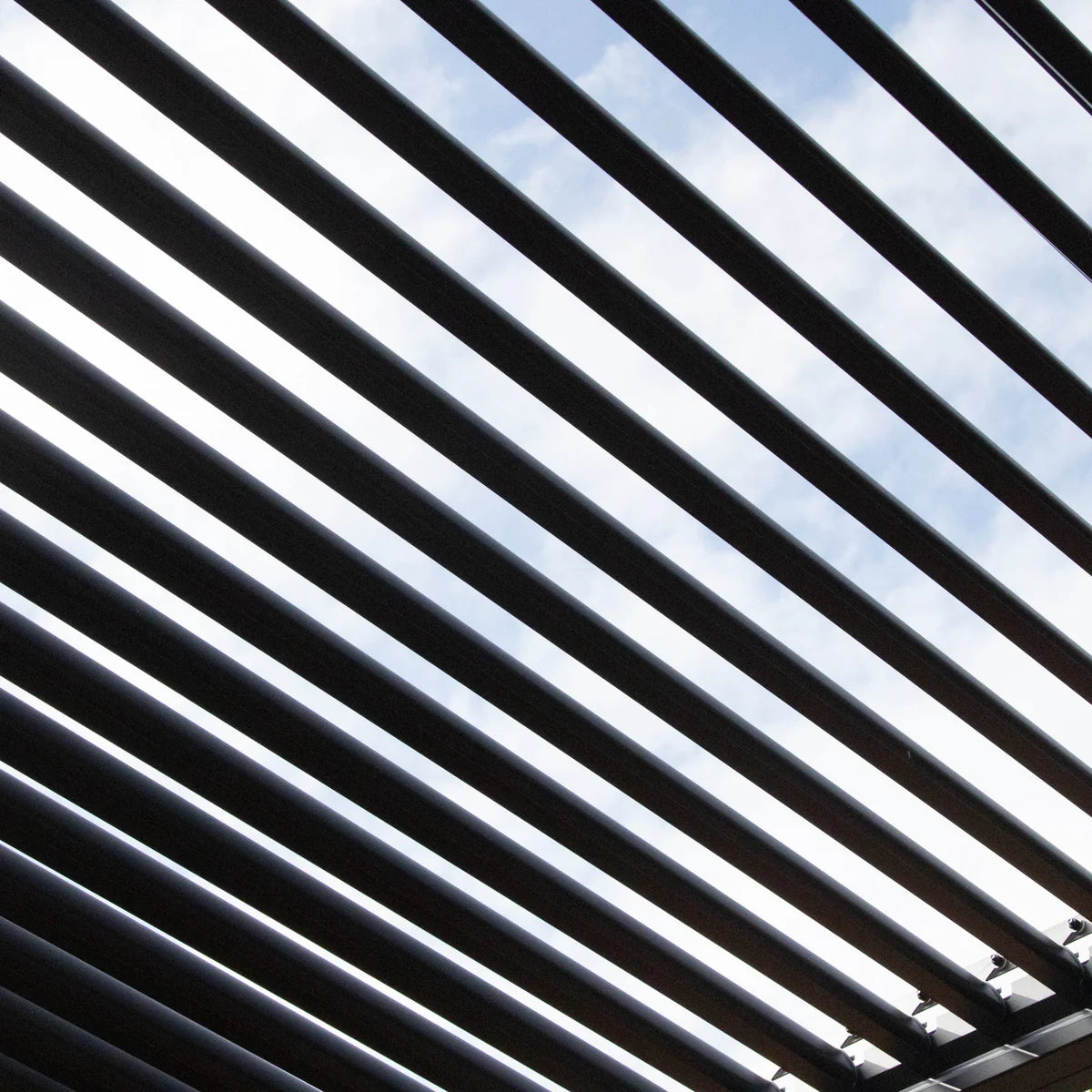

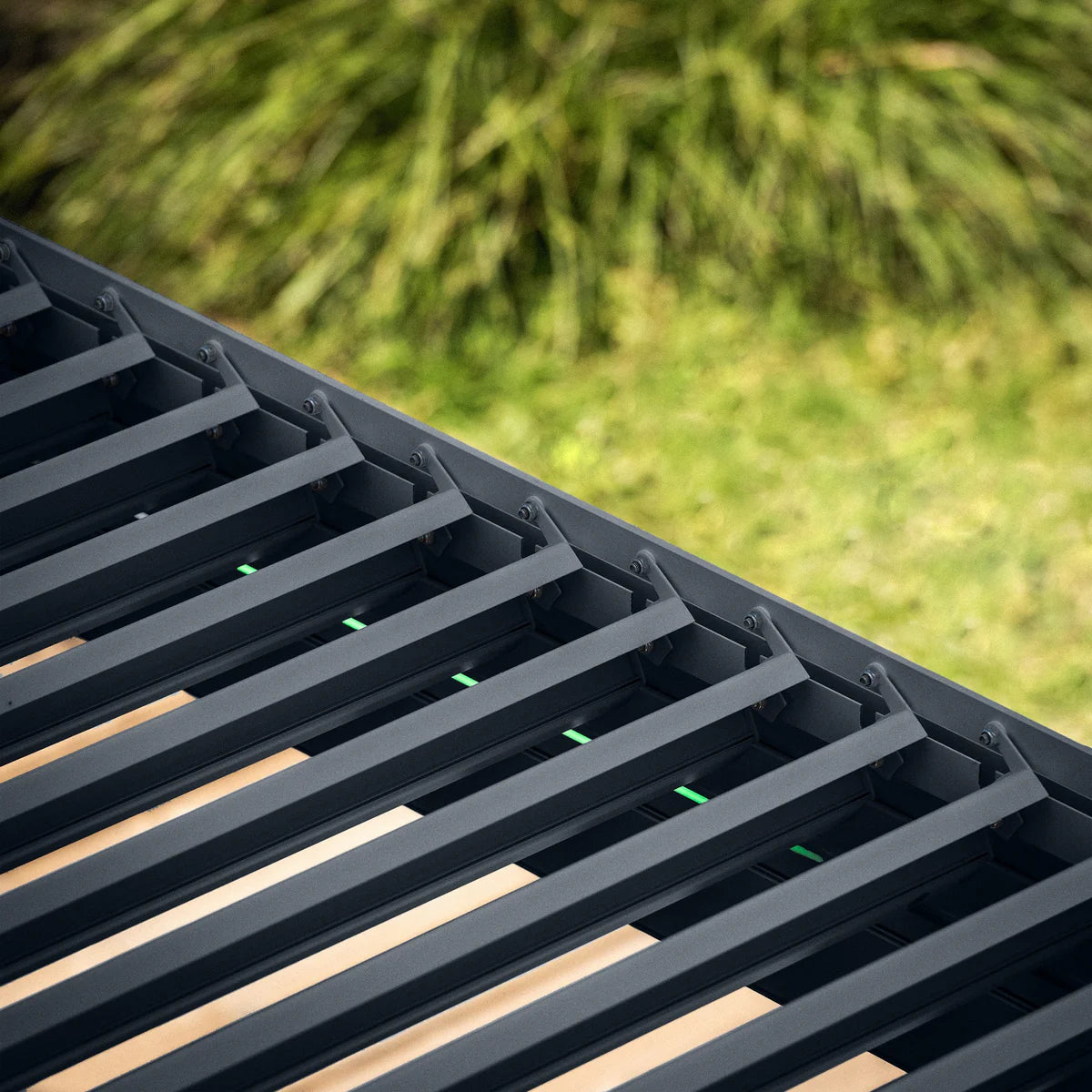

Tilted double-layered louvres let you close the roof for shade or open to sunshine. A built-in drainage system directs rain into the framework and down to ground, reducing pooling.

Remote-controlled LED mood lighting runs around the gutter, with color options and dimming; a 240-volt socket powers the glow.

Customisable with blinds and heaters; assembly by 2-3 people in 2-3 hours. Install on level ground and bolt down to secure. Warranty: 3 years on the frame, 1 year on blinds and louvres.

Product Details

The PergoSTET range - exclusive to Harbour Lifestyle - is an award winning range of modern Pergolas. All PergoSTET pergolas provide shade in the summer heat, and with tilting double-layered louvres, you can quickly switch between a closed roof and an open-top allowing the sunshine to come beaming through.

This 4m x 4m Square Pergola Frame Only is customisable to suit your needs, with optional extras including blinds, heaters and assembly services.

The incredibly well designed, built-in drainage system prevents you from having to open the louvred roof as any excess water that lands on the louvres, flow into u shaped channels. Water will not pool on top, as any excess rainwater will flow from the roof into the framework of the pergola, once in the horizontal framework, the rainwater flows into the legs and then vertically down to the ground. It's important to remember that pergolas are not watertight buildings and in the event of torrential rain, the water may not flow through the guttering system quick enough and therefore cause leakage, much like an overwhelmed gutter on a house.

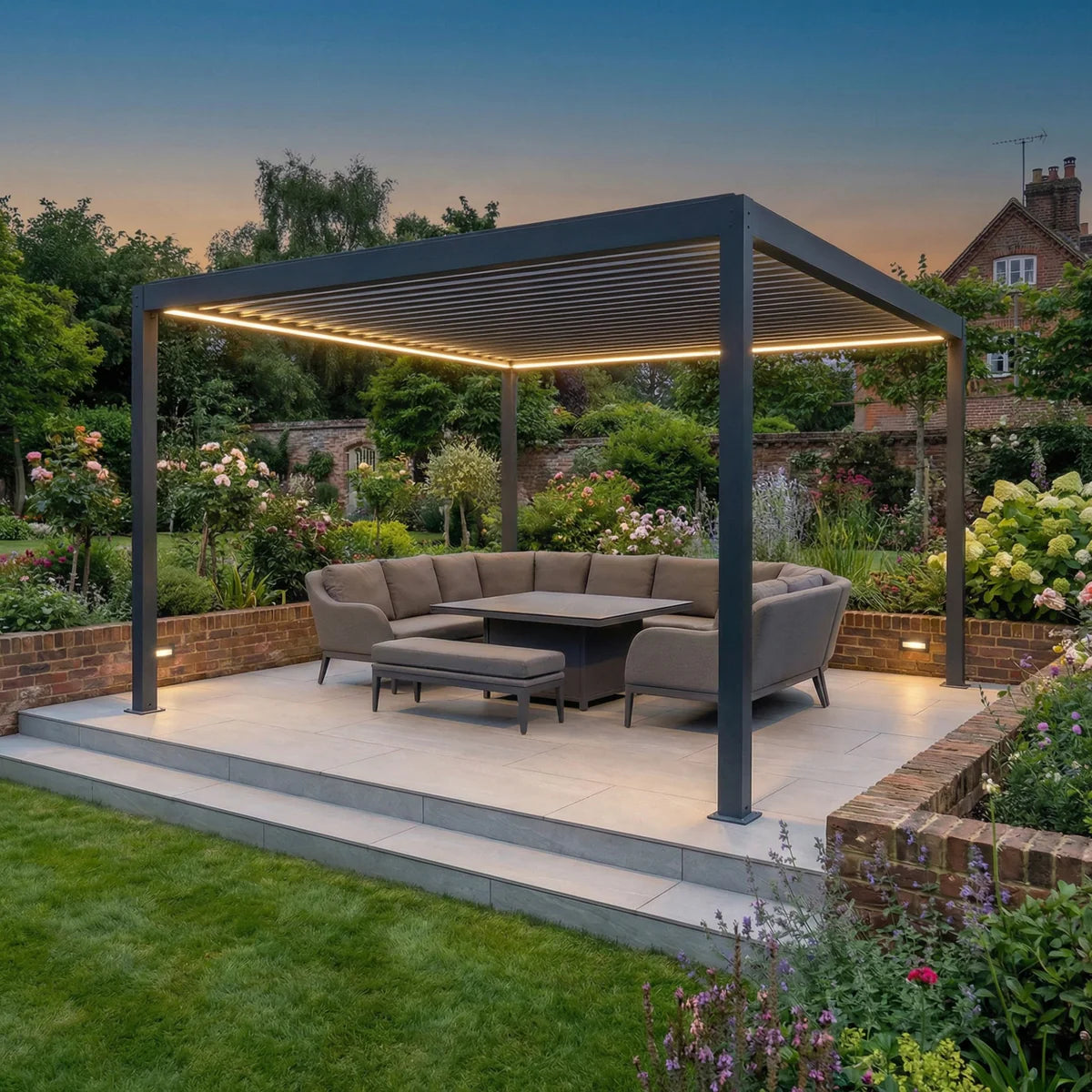

In addition to this, there are remote-controlled LED mood lighting strips around the perimeter of the gutter system. The LED strips can be an array of different colours and can be changed with the use of a remote control. The lights are dimmable to your desired brightness to set the mood. The gazebo would require a 240-volt socket for the lights to be activated.

All PergoSTET pergolas come with a 3 year warranty on the frame and 1 year warranty on the blinds and louvres.

Important assembly instructions:

  • PergoSTET pergolas need to be installed on level surfaces in order for their drainage system to work efficiently. Standard 1:80 falls for surface water runoffs on patios are perfectly acceptable. If the fall is significantly steeper than this, installation may still be possible but performance will be affected and warranties may be invalid.
  • Once assembled, it’s vital to immediately secure the pergola to the floor using the bolts provided as standard. Failing to bolt it down risks the structural integrity, potentially causing beams to shift. Unbolted feet leave your pergola vulnerable to movement, compromising its durability and safety.
  • This well engineered contemporary pergola requires 2-3 people to assemble and should be completed in approximately 2 - 3 hours.

Note - strong winds/weather conditions

We highly recommend assembling your pergola during suitable weather conditions. This will help ensure the safety of the pergola, minimize any potential risks during the assembly process, and facilitate a secure and successful installation.

If you experience strong winds, we recommend rolling up the blinds to avoid any damage to the structure. In extreme conditions you may need to temporarily hold the blind in the rolled up position using a spring clamp. We also recommend that the louvred roof is fully open.

By taking these precautions, you can help ensure the longevity and safety of your pergola and blinds during windy weather.

Note - Adding Additional Blinds

Additional blinds are now available for purchase on the pergola page, providing the option to fully enclose your PergoSTET. These blinds can be seamlessly installed on your pergola in the same manner as the existing ones, in accordance with our instruction manuals.



Specifications

Bulb Type: LED

Cable Length: 4m

Colour(s): Grey

Fixing Type: Bolted

IP Rating ?: IP68

Light Bulb Colour: Multi-colour

Material(s): Aluminium

Open Mechanism: Manual Crank Handle

Powder Coating Finish ?: Tiger Drylac ® Powder Coating

Power Source: Mains Powered Transformer

RAL Code ?: 7016

Shape: Square

Tilt Functionality: Yes - louvres tilt 90° clockwise when facing crank handle mechanism

Voltage ?: 24V

Wattage ?: 150W

Features

Built-in Drainage System ?: Yes

Dimmable: Yes

Easy Maintenance: Yes

Integrated Lighting: Yes

Remote Controlled: Yes

Rot Resistant: Yes

Tiger Drylac Powder Coating ?: Yes

UV Resistant: Yes

Water Resistant: Yes

Year Round Use: Yes

Tilting Louvres: Yes

What's Included

1x 4m x 4m PergoSTET (Aluminium)

1x LED Light Fixing Kit (Includes 4x Integrated LED Strips, 1x RGB Controller, 1x Transformer, 1x Extension Cable and 1x Remote)

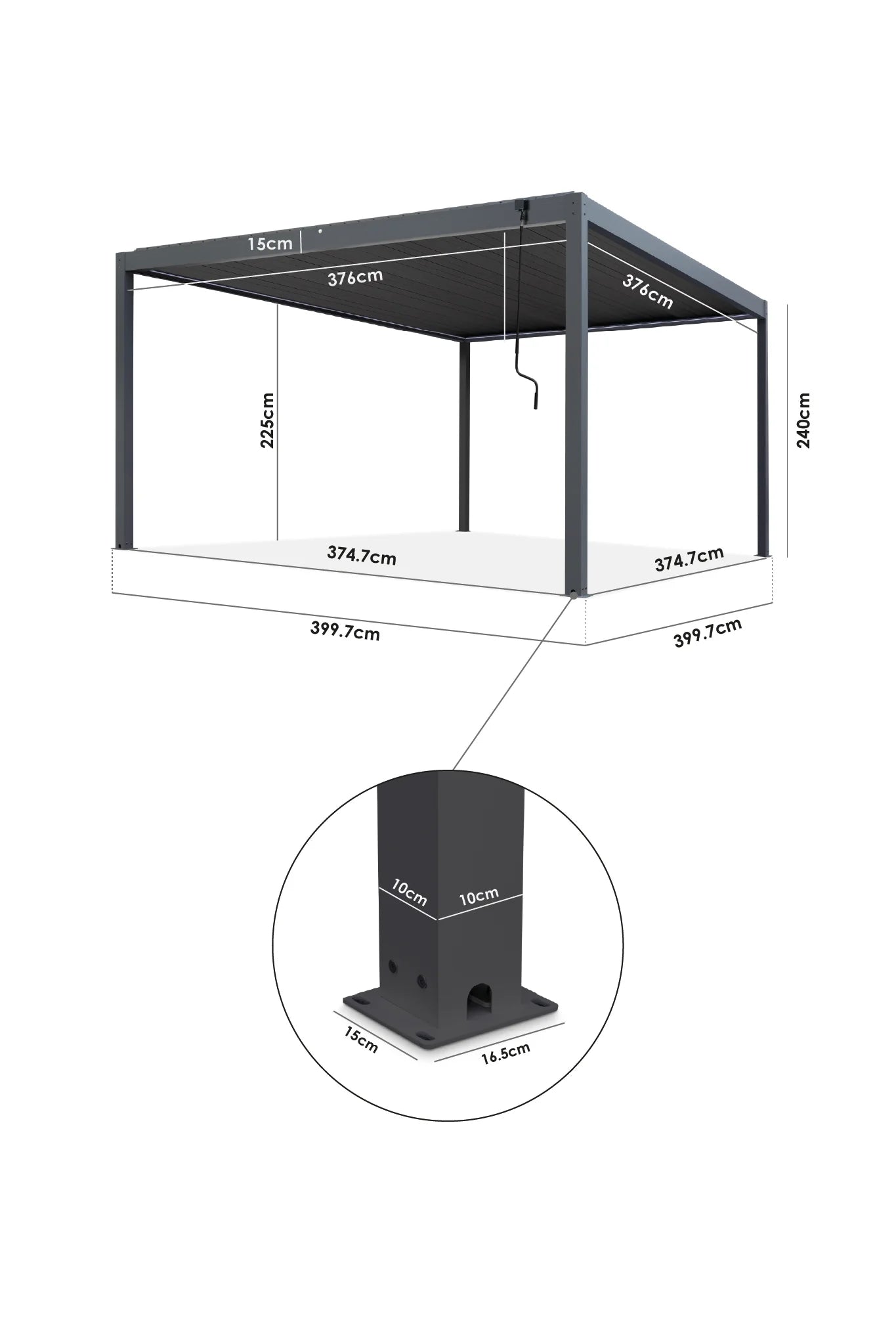

Size & Dimensions

Internal Width: 374.7cm

Internal Depth: 374.7cm

Internal Height: 224.8cm

 Carton Details

Box 1: W400cm x D25cm x H25cm | 44kg

Box 2: W292cm x D32cm x H39cm | 41.83kg

Box 3: W292cm x D32cm x H39cm | 42kg

Box 4: W256.5cm x D27cm x H24cm | 42kg

Warranty

Product 3 Year Guarantee

Installation Services

01. Pergola Assembly Service: Free‑Standing Pergolas –
£499

Price: £499

Availability: UK Mainland only (excludes offshore)

Includes:

  • Delivery of the pergola
  • Full assembly
  • Removal of all packaging

Important:

This service does not include bolting down your pergola. To add bolt‑down
installation, select one of the bolt‑down services below.

02. Bolt Down Service (Excluding Porcelain) – £100

Price: £100

Requires: Pergola Assembly Service

Suitable for:

  • Most well‑constructed hard surfaces
  • Not suitable for porcelain tiles

Notes:

If your patio or paving is old or you’re unsure about the foundation, it is
recommended to lift the surface and install a concrete foundation beneath each pergola leg for added stability.

03. Bolt Down Service (to Porcelain) – £250

Price: £250

Requires: Pergola Assembly Service

Availability: UK Mainland only (excludes offshore)

Suitable for:

  • Porcelain patios and porcelain‑tiled surfaces

Notes:

If your patio or paving is old or you’re unsure about the foundation, it is
recommended to lift the surface and install a concrete foundation beneath each
pergola leg for added stability.

04. Wall Mounted Pergola Installation – £799

Price: £799

Availability: UK Mainland only (excludes offshore)

Includes:

  • Delivery
  • Assembly
  • Full installation
  • Bolt‑down to patio or decking
  • Removal of all packaging

Scheduling:

  • February–September (busy season): may take up to 3 weeks to schedule.

05. Deluxe Pergola Assembly Service – From £599

Price Options: £599 / £699 / £799 (depending on pergola size)

Availability: UK Mainland

Includes:

  • Delivery of the pergola
  • Full assembly
  • Bolt‑down included
  • Removal of all packaging

Scheduling:

  • Standard: 7–10 working days
  • Busy season (Feb–Sept): up to 3 weeks
