PergoSTET Plus Frame Only 3m x 4m Rectangular Pergola with LED Lighting in Wood Effect

Introduce the organic elegance of natural timber to your garden terrace without any of the heavy maintenance or structural weathering. The PergoSTET Plus 3m x 4m Rectangular Pergola Frame Only presents an award-winning bioclimatic foundation expertly tailored for premium UK properties. Cloaked in a magnificent, highly realistic wood effect finish over industrial-strength aluminum, this contemporary architectural canopy expands your luxury living space outward, allowing you to dine al-fresco or host garden gatherings regardless of sudden seasonal shifts.

Bioclimatic Double-Layered Tilting Louvres

Adapt to changing weather configurations smoothly using the integrated manual crank handle mechanism. The double-layered aluminum roof louvres rotate up to 90 degrees clockwise, letting you tilt them open to invite afternoon sunshine deep into your lounge space or seal them down flat into a fully waterproof canopy when sudden downpours strike. This advanced engineering eliminates traditional timber warp risks, delivering long-term seasonal protection with high-end operational simplicity.

Immersive Multi-Colour Remote-Controlled LEDs

Transform your outdoor patio layout into an immersive evening entertainment zone as daylight fades. Fitted cleanly around the interior perimeter of the gutter framework, the built-in LED mood lighting strips offer a striking array of multi-colour custom options. Controlled entirely via an included wireless remote handset, the integrated low-voltage lighting system features fluid dimming parameters that allow you to seamlessly adjust the brightness to set the perfect atmosphere for your guests.

Concealed High-Flow Gutter Drainage Network

Relax through heavy rain showers in absolute comfort without worrying about overhead pooling or sudden side drips. Engineered with an incredibly intelligent U-shaped channel drainage network built straight into the core frame, any excess rainwater landing on the closed double-layer louvres flows cleanly into integrated perimeter channels. The moisture then routes laterally into the horizontal framework and down through the structural vertical post legs to exit invisibly at ground level, keeping your patio dry and preventing water tracking.

Tiger Drylac® Architectural Finish Protection

Built to withstand demanding outdoor conditions, the high-grade aluminum chassis is protected by a genuine Tiger Drylac® powder coating finish. This commercial-grade coating provides outstanding UV, rot, and rust resistance, preventing the wood effect finish from fading, corroding, or peeling over time. Backed by a certified IP68 weatherproofing classification for its electrical connections, the system delivers premium year-round performance with virtually zero maintenance.

Key Features

• Premium Wood Effect Finish: Provides the warm, refined aesthetic of solid wood paired with the long-lasting, rust-free durability of structural aluminum.
• 90-Degree Manual Tilting Louvres: Quick-adjust double-layered ceiling canopy switches effortlessly between open sun tracking and a closed waterproof roof shield.
• Concealed U-Channel Drainage: Directs rainwater internally through the horizontal framework and post legs to prevent overhead pooling.
• Multi-Colour RGB LED Trim: Custom perimeter mood lighting array features full wireless remote operation and dimmable brightness parameters.
• Tiger Drylac® Powder Coating: Applied directly to the heavy-duty aluminum chassis to secure absolute rot, rust, and UV fade resistance.
• Year-Round Weatherproofing: Certified IP68 electrical sealing ensures the structural lighting network remains fully functional in all outdoor elements.
• Easy Maintenance Engineering: Designed with premium all-weather materials that require simple cleaning and absolute minimal maintenance over time.

What’s Included

• 1x 3m x 4m PergoSTET Plus Aluminum Frame (Premium Wood Effect Finish)
• 1x Complete Tilting Double-Layered Louvre Roof Panel Set
• 1x Manual Crank Handle Mechanism
• 1x LED Light Fixing Kit (Includes 4x Integrated LED Strips, 1x RGB Controller, 1x Transformer, 1x Extension Cable, and 1x Remote)
• 1x Complete Ground Fixing Anchor Bolt Structural Kit

Specifications

• Material Composition: High-Grade Structural Aluminum
• Colour Finish: Wood Effect
• Powder Coating Shield: Genuine Tiger Drylac® Powder Coating
• Structural Profile Shape: Rectangle
• Roof Control Mechanism: Manual Crank Handle
• Tilt Functionality Direction: 90° Clockwise Rotation (Facing Crank Position)
• Fixing Base Type: Bolted Anchor Footplates
• Power Source: Mains Powered Transformer
• Cable Length: 4 Meters
• Operating Voltage Profile: Safe 24V Low-Voltage Output
• Electrical Power Wattage Draw: 150W
• Waterproof Classification: Certified IP68 Weatherproof Elements
• Bulb Integration Style: LED
• Light Bulb Colour: Multi-colour

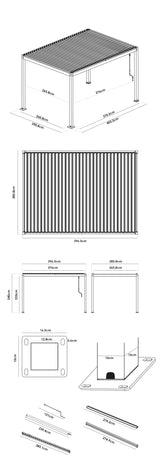

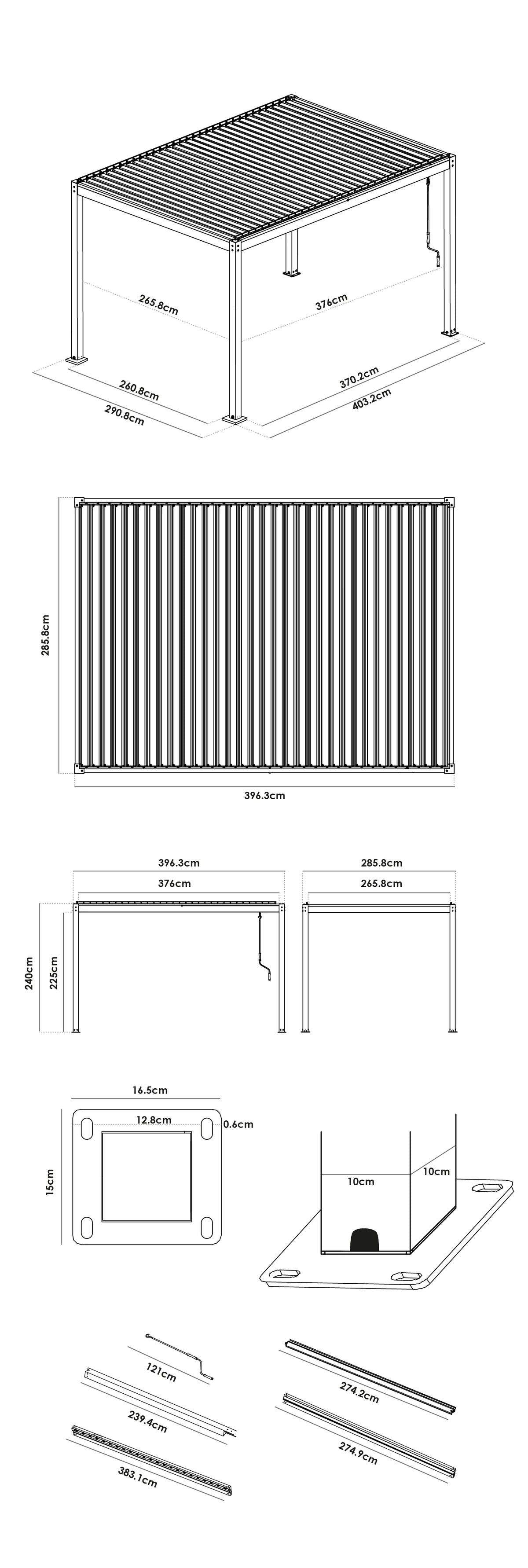

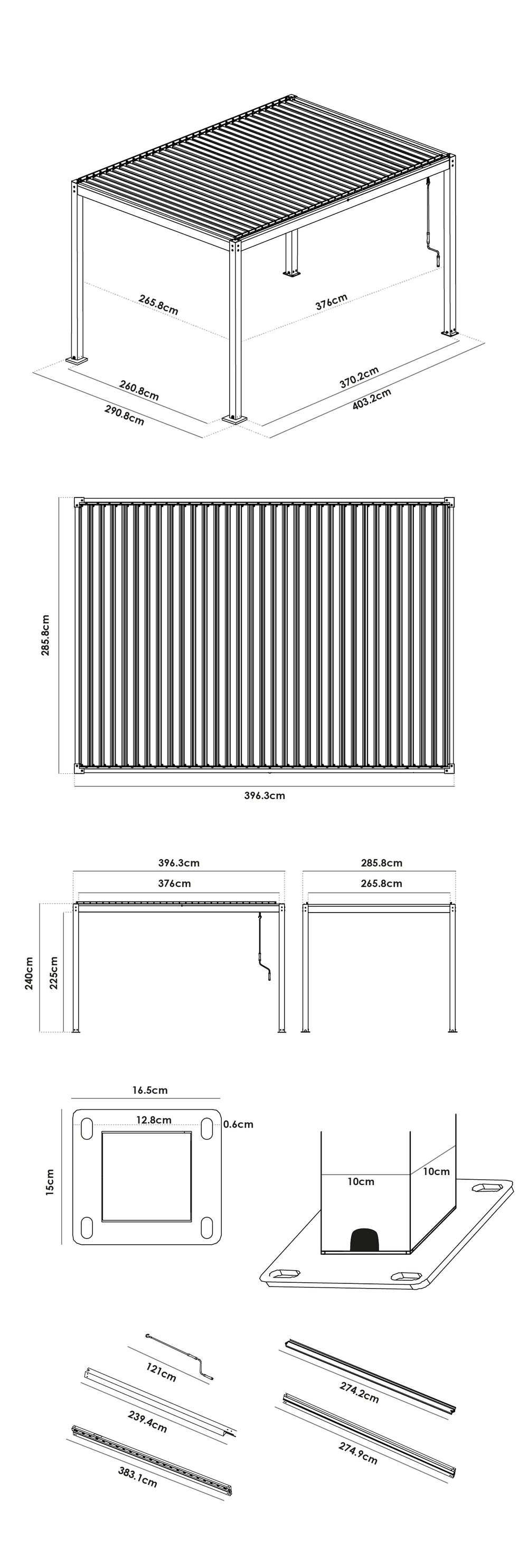

• External Width (Total Footprint): 403.2cm
• External Depth (Total Footprint): 290.8cm
• External Height (Total Post Limit): 240cm
• Internal Clear Width Post-to-Post: 370.2cm
• Internal Clear Depth Post-to-Post: 260.8cm
• Internal Height Clearance: 225cm
• Footplate Dimensions Base: W16.5cm x D15cm
• Hand Crank Length Parameter: W121cm
• Post Profile Dimensions: W239.4cm
• Main Beam Profile Dimensions: W383.1cm
• Beam Profile Dimensions: W274.9cm
• Louvre Strip Dimensions Profile: W274.2cm

Carton Details & Packaging Breakdown

• Box 1: W400cm x D25cm x H25cm | Weight: 44kg
• Box 2: W292cm x D32cm x H39cm | Weight: 41.83kg
• Box 3: W292cm x D32cm x H39cm | Weight: 42kg
• Box 4: W256.5cm x D27cm x H24cm | Weight: 42kg

Compatibility & Installation Safety Guidelines

• Customisable Enclosure Upgrades: Frame-only profile allows seamless installation of optional pull-down textilene privacy blinds, outdoor space heaters, or bespoke assembly services.
• Level Ground Requirement: Must be installed on a level surface (standard 1:80 surface water falls on patios are perfectly acceptable) to ensure the internal U-shaped channels route water effectively. Steeper falls will compromise structural alignment and void warranties.
• Mandatory Ground Anchor Anchorage: Once assembled, the feet must be immediately bolted to solid ground foundations using the provided hardware. Leaving the base unbolted risks structural shifting, beam misalignment, and wind hazards.
• Assembly Requirements: Requires 2 to 3 people for safe installation, with an approximate build time of 2 to 3 hours under fair weather conditions.
• High Wind Action Protocols: During severe storm warnings or high-velocity gales, we recommend ensuring optional blinds are rolled completely up. Leave the double-layer louvred roof set to a fully open status to minimize wind lift force and protect structural integrity.
• All-Weather Protection Boundaries: While highly wind-resistant and protective, pergolas operate as open outdoor structures rather than hermetically sealed buildings. During exceptional UK torrential storms, heavy volumes may briefly exceed the internal vertical drainage capacity, resulting in minor runoff overflow similar to residential roof guttering networks.

Optional Accessories (Available Separately)

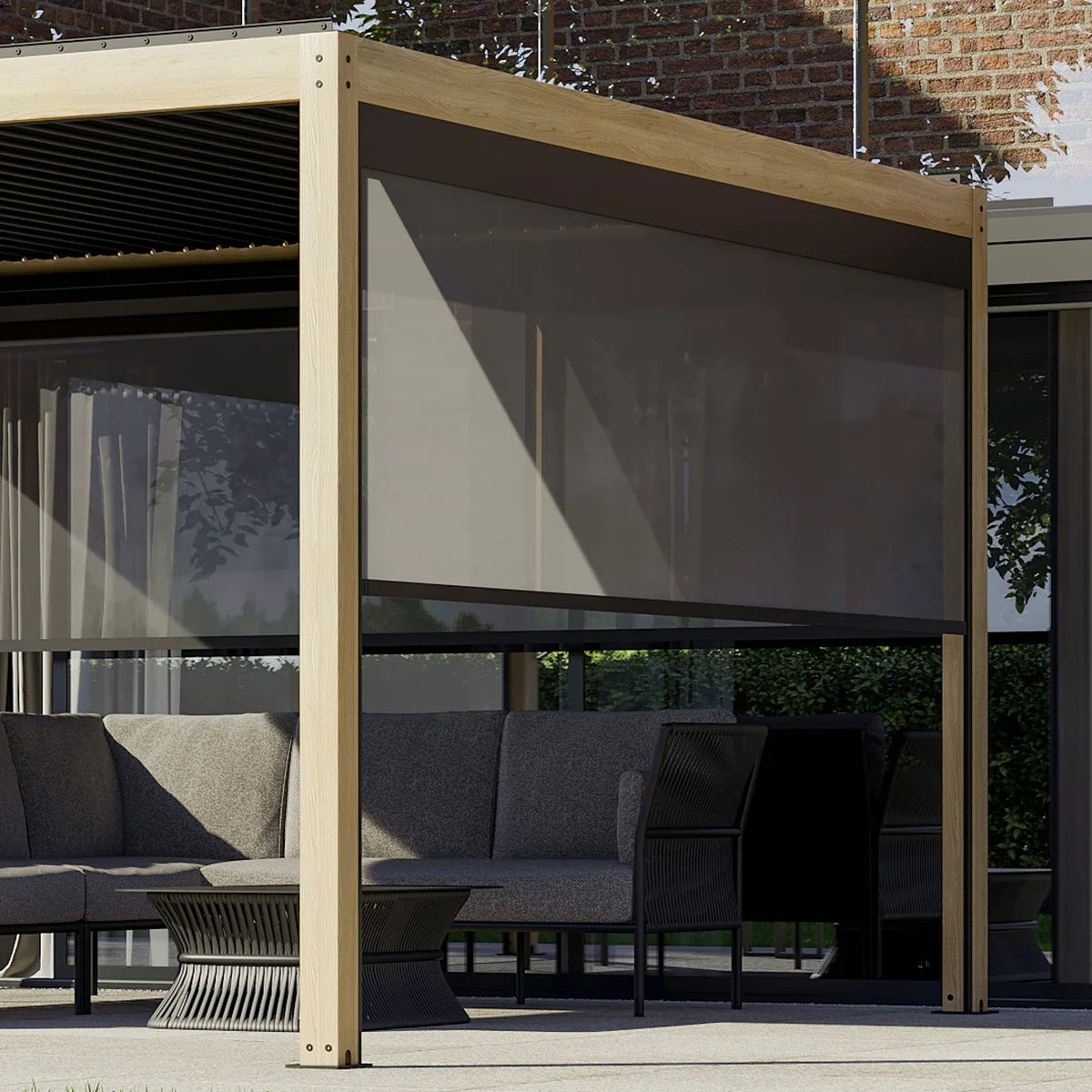

• PergoSTET Textilene Privacy Blinds: Premium manual drop screens designed to integrate seamlessly into the main beam structure to fully box in your setup.
• High-Output Multi-Zone Beam Heaters: Mount seamlessly to horizontal beams to lock in warmth across your seating zone.

Warranty

• 3-Year Frame Guarantee: Fully covers the main architectural aluminum framework profiles against core material defects and manufacturing flaws.
• 1-Year Component Guarantee: Provides dedicated coverage for the motorized RGB LED strip channels and louvre crank tracking systems.
