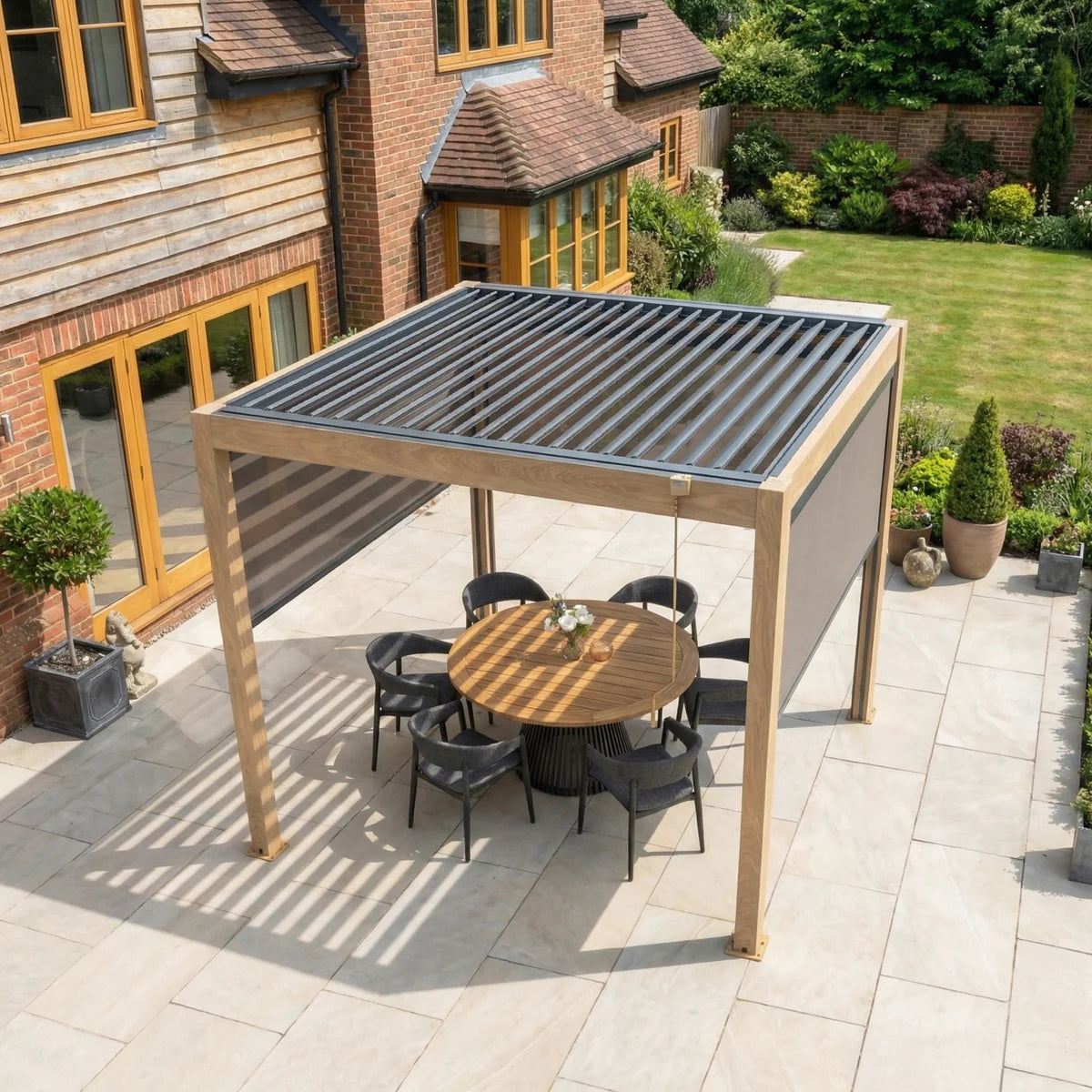

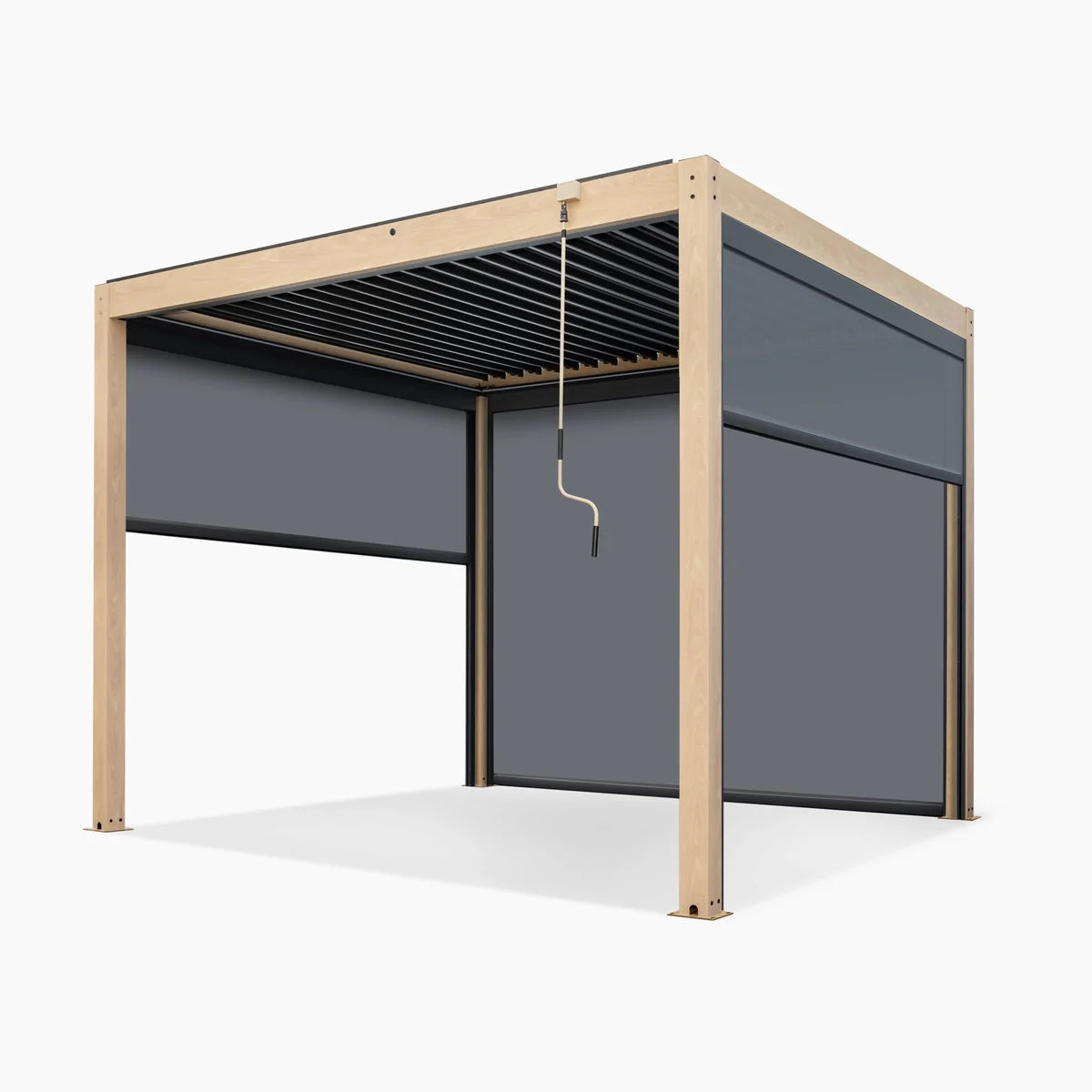

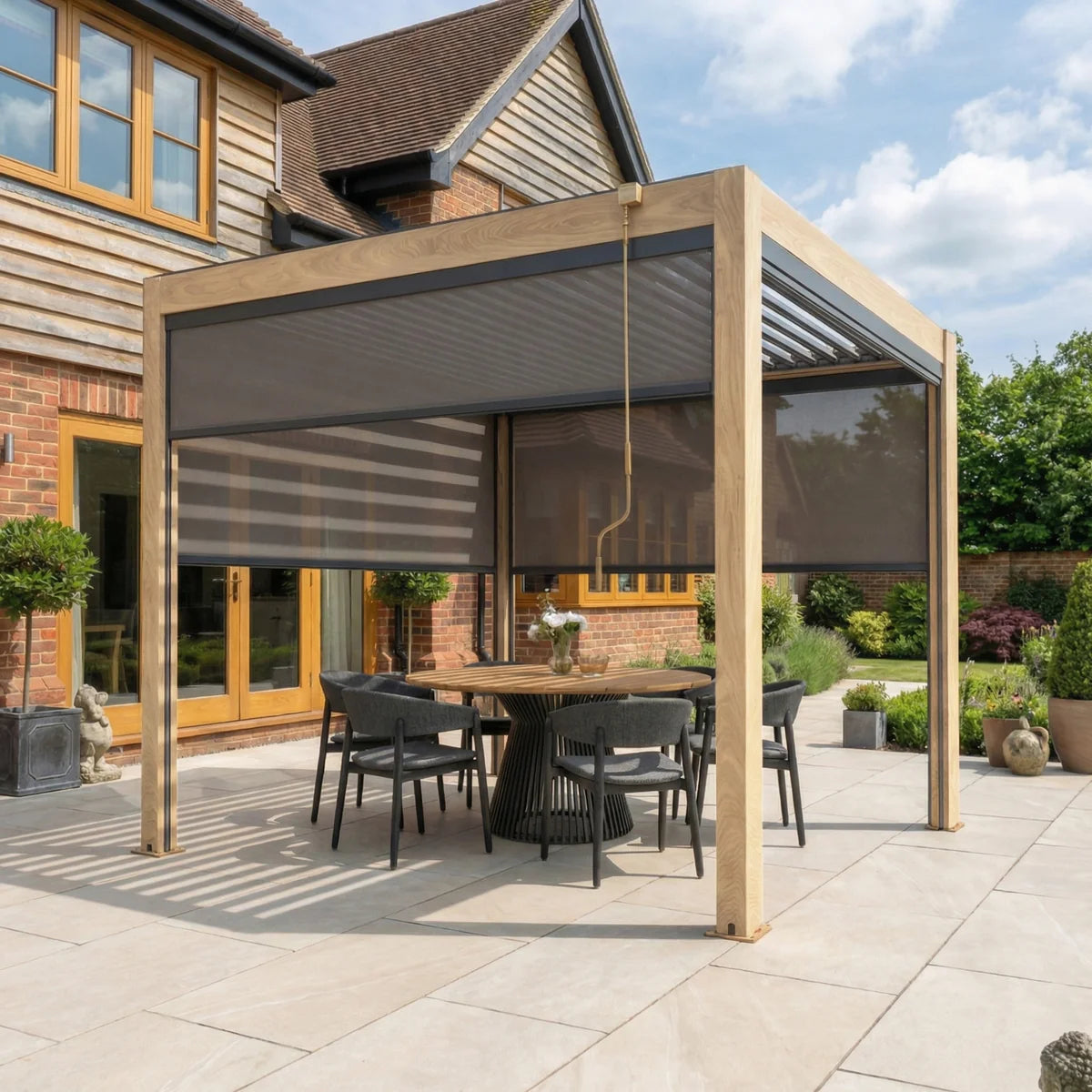

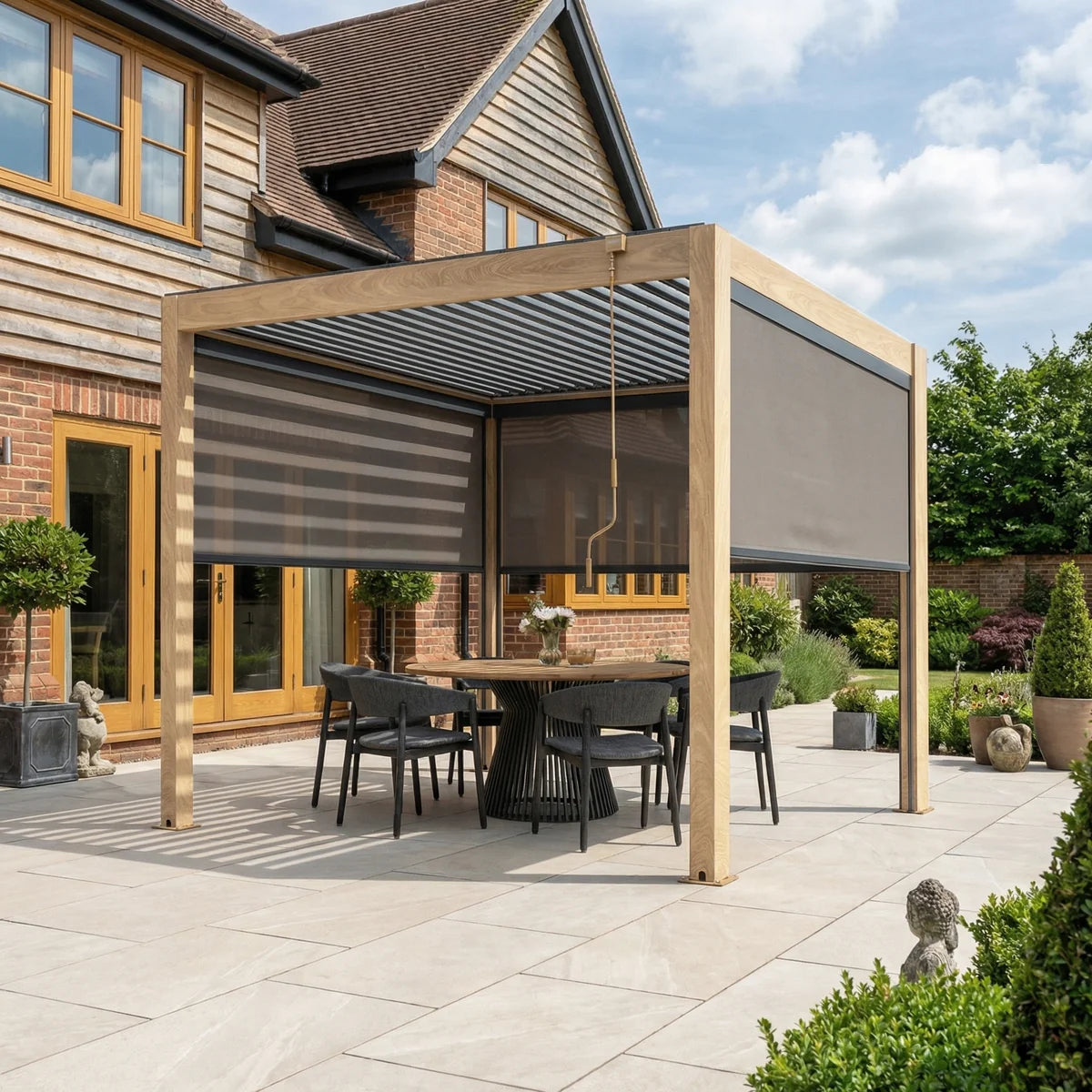

PergoSTET Plus 3x3m Wood Effect Aluminum Pergola with LED Lights & 3 Manual Blinds

Bring the timeless texture of authentic wood grain to your terrace layout without any of the high-maintenance upkeep. The PergoSTET Plus 3m x 3m Square Pergola is an award-winning, premium bioclimatic shelter custom-engineered for high-end UK properties. By encasing advanced outdoor engineering inside a luxurious wood effect finish, this structure lets you host sophisticated open-air dinner parties or wind down in your garden lounge space while remaining fully protected from unpredictable weather elements.

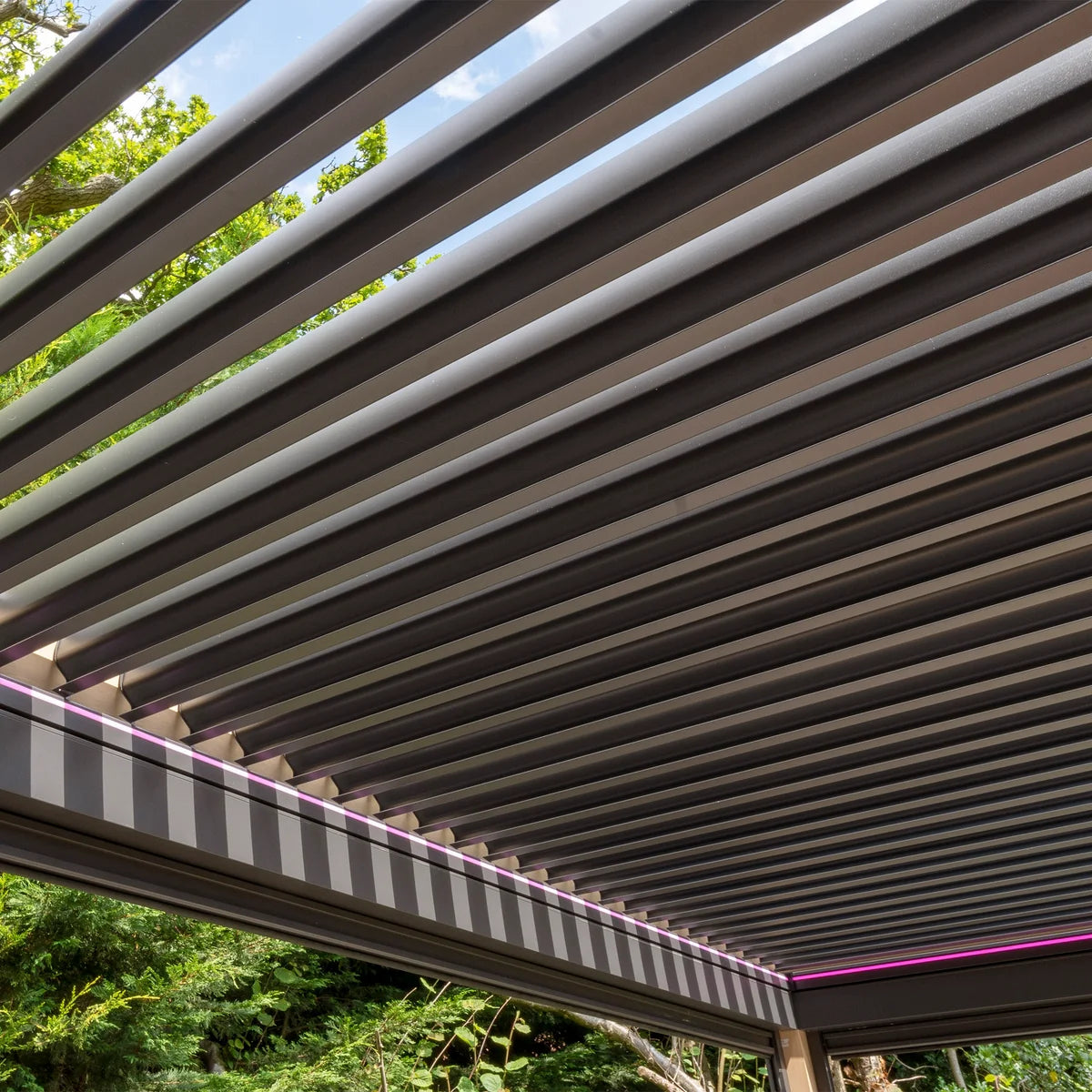

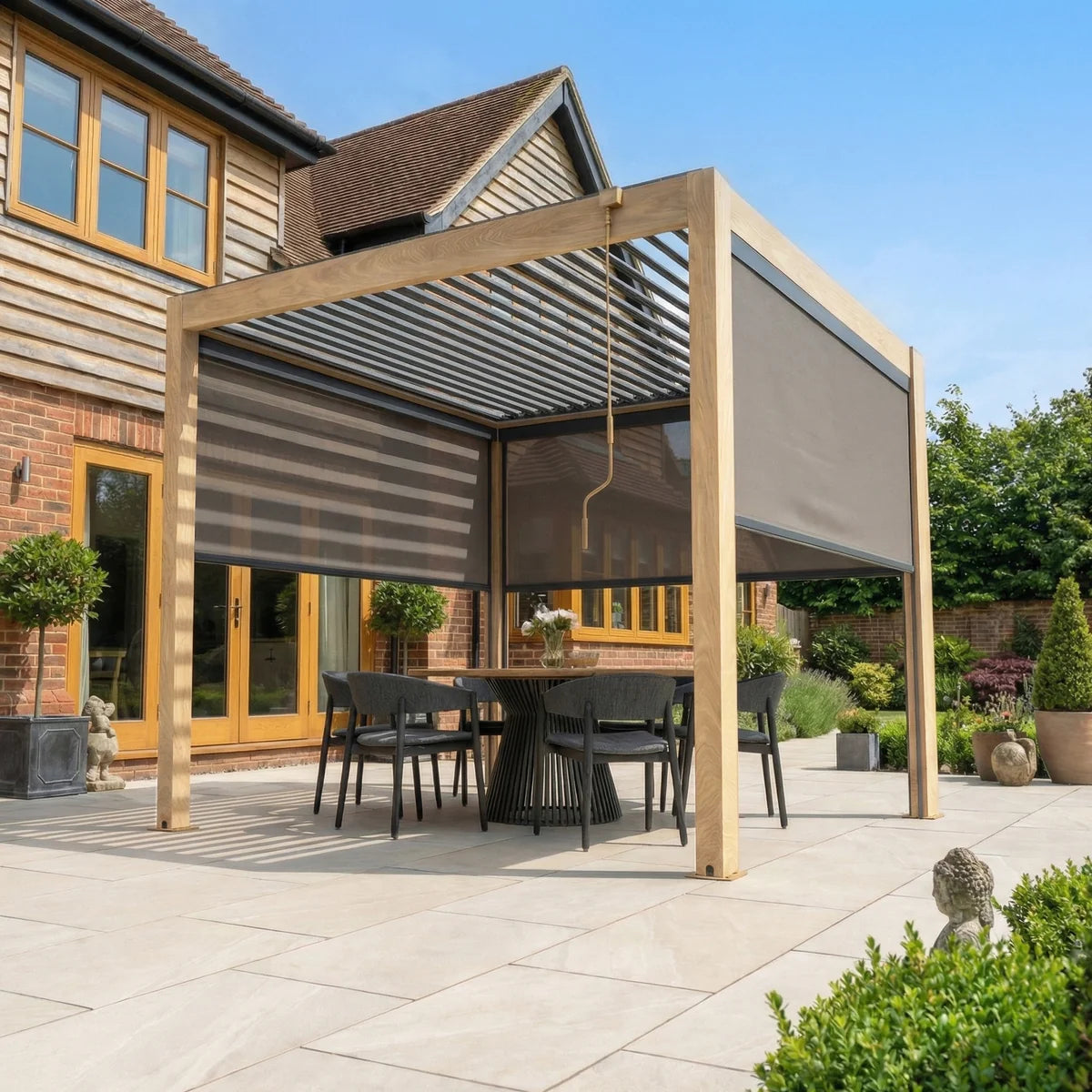

Bioclimatic Double-Layered Tilting Louvres

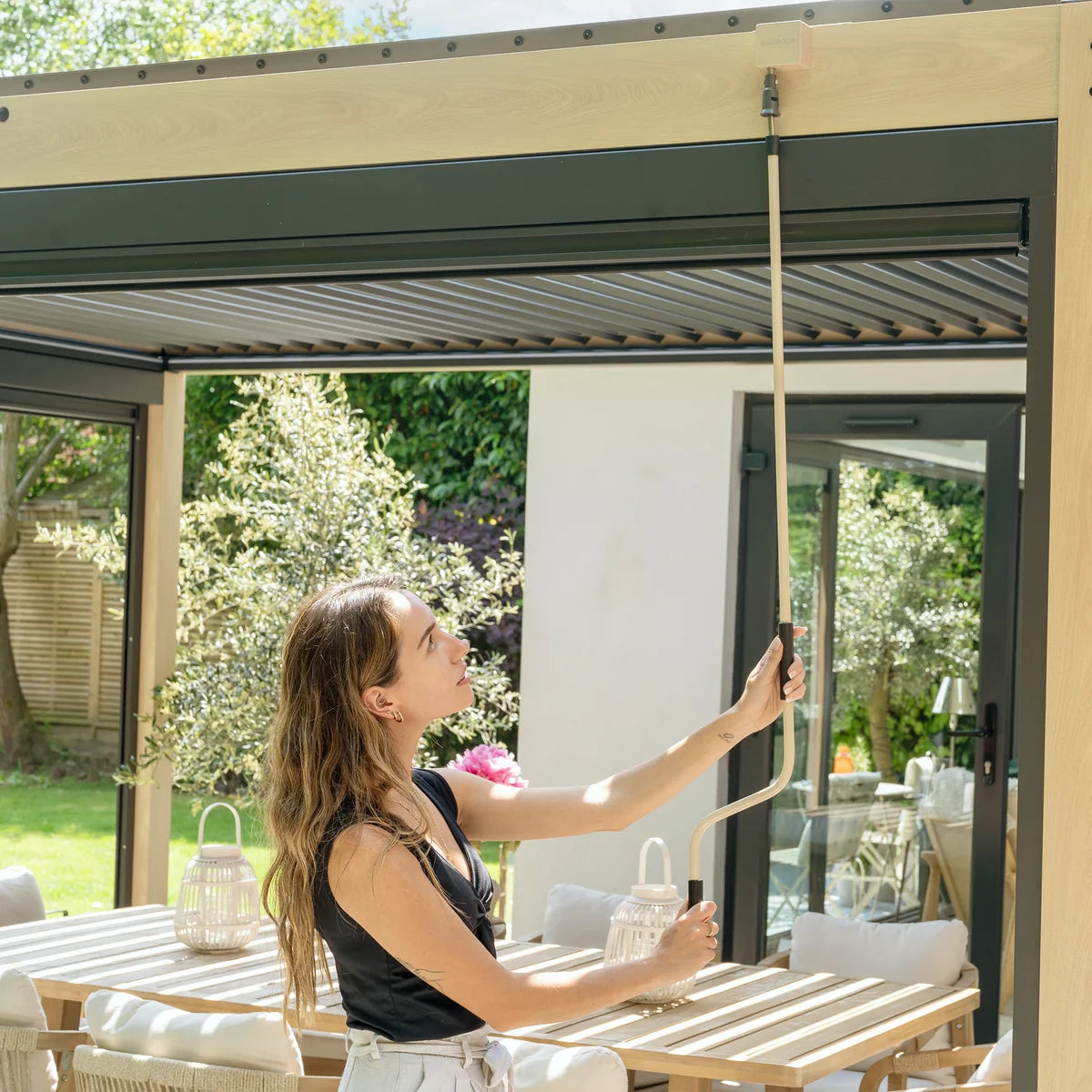

Adapt to changing seasonal shifts at a moment's notice using the heavy-duty manual crank handle mechanism. The double-layered aluminum louvres rotate smoothly up to 90 degrees clockwise, letting you open the roof completely to welcome the summer afternoon sunshine or seal it flat into a fully waterproof canopy when sudden rain sets in. This premium layout balances precise shade ventilation with reliable overhead protection, making it an essential choice for year-round terrace use.

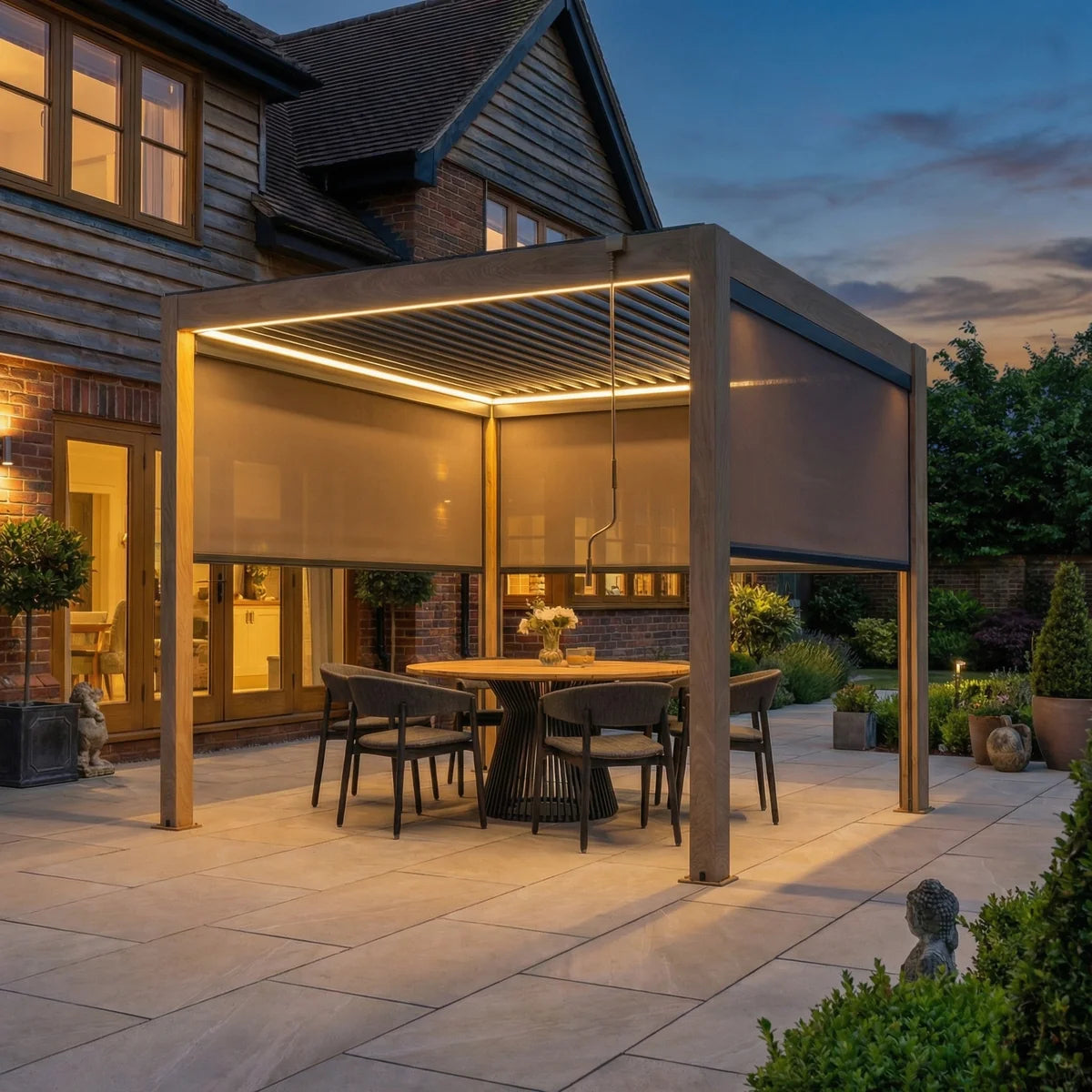

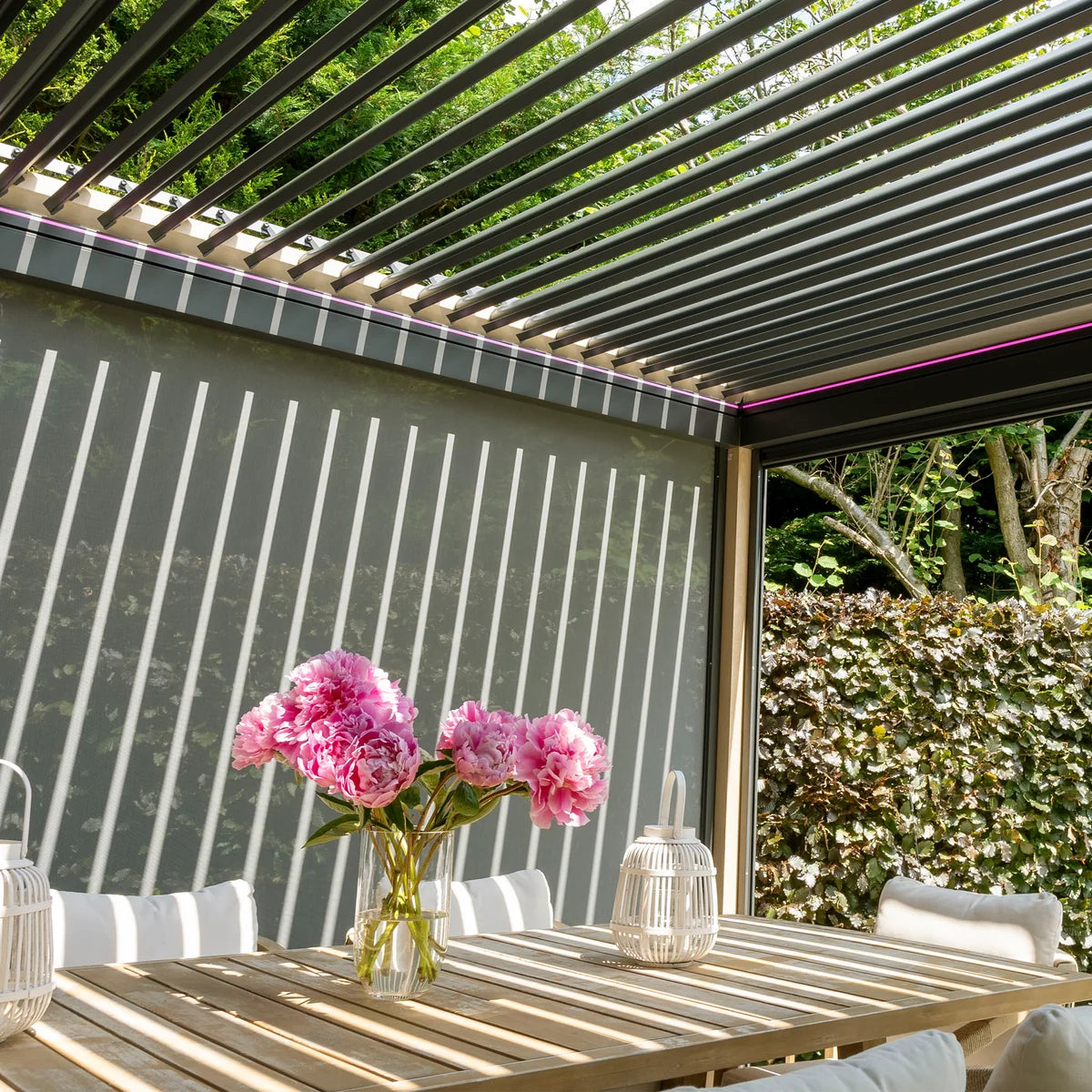

Dimmable Remote-Controlled RGB LED Lighting

Transform your outdoor patio layout into an immersive evening entertainment zone as daylight fades. Fitted cleanly along the interior perimeter of the gutter framework, the built-in LED mood lighting strips offer a striking array of multiple colors. Controlled entirely via a wireless remote control handset, the integrated system features fluid dimming parameters that allow you to seamlessly adjust the brightness to set the perfect atmosphere for your guests.

Concealed High-Flow Gutter Drainage Network

Relax through heavy downpours with an incredibly intelligent U-shaped channel drainage network built straight into the core frame. Rainwater catching on the closed double-layer louvres flows cleanly into integrated perimeter channels, directing the excess volume laterally into the horizontal framework and down through the structural vertical post legs to exit invisibly at ground level. This self-contained setup keeps your outdoor kitchen island or dining set dry, preventing dangerous top surface pooling.

Key Features

• Premium Wood Effect Finish: Provides the warm, refined aesthetic of solid wood paired with the long-lasting, rust-free durability of structural aluminum.
• 90-Degree Manual Tilting Louvres: Quick-adjust double-layered ceiling canopy switches effortlessly between open sun tracking and a closed waterproof roof shield.

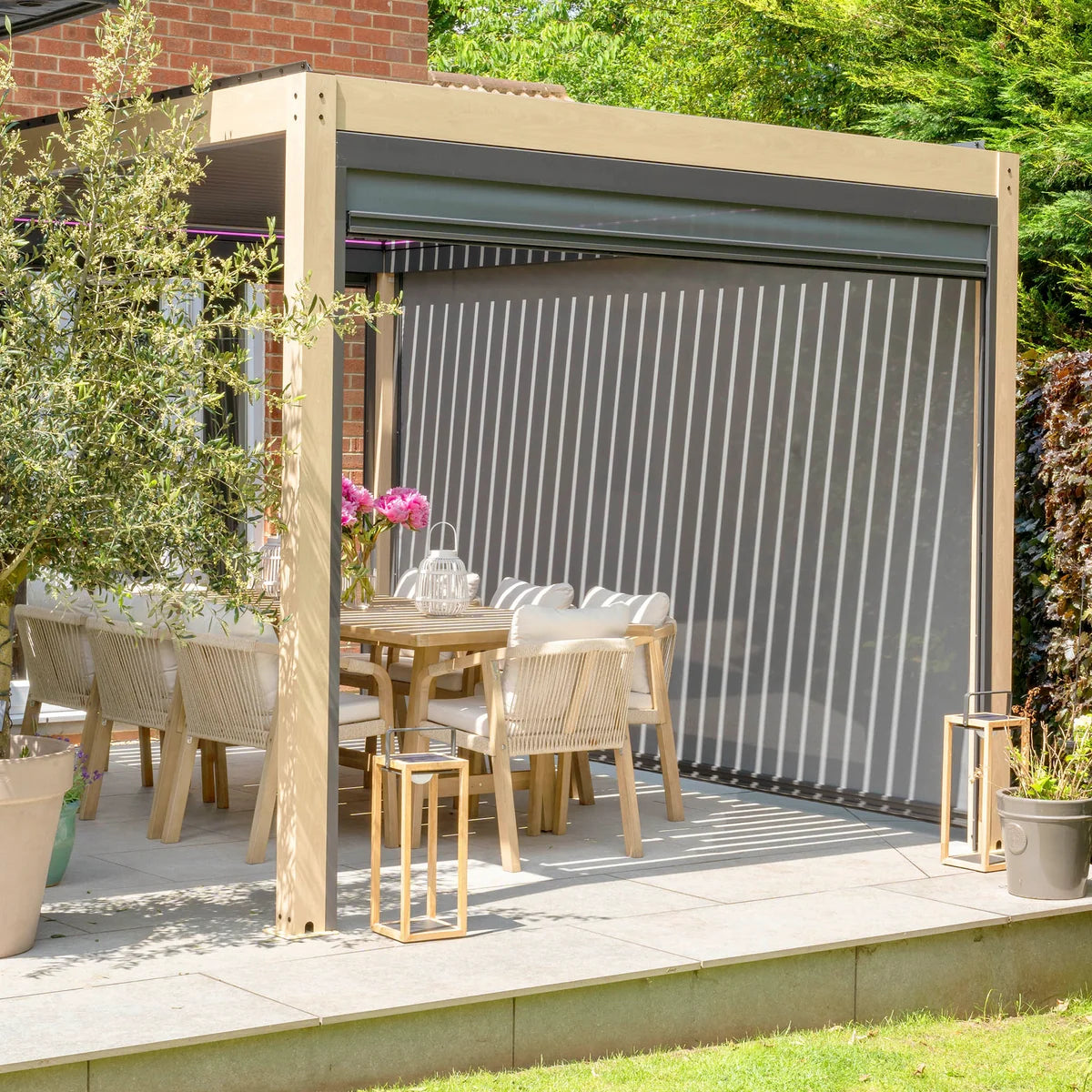

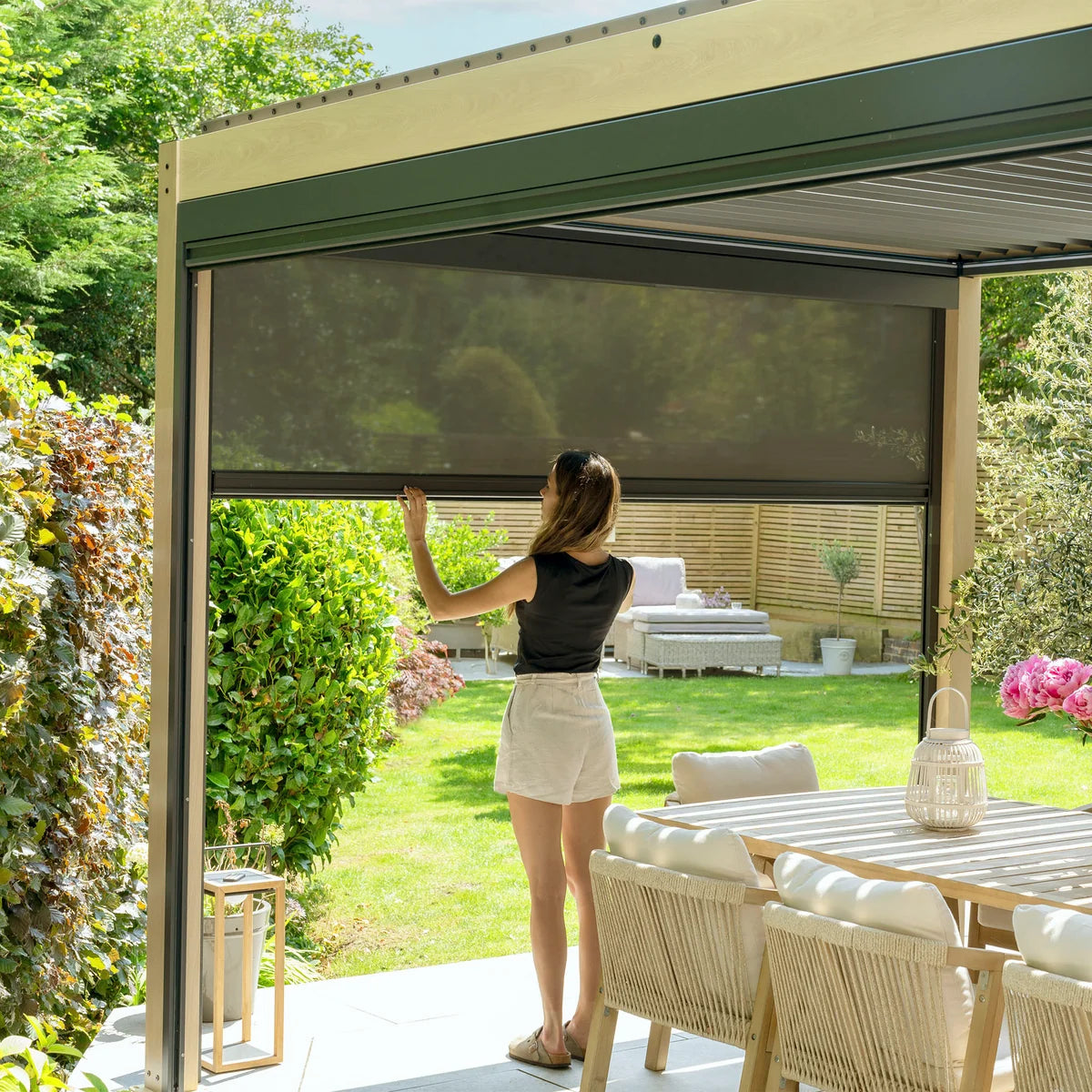

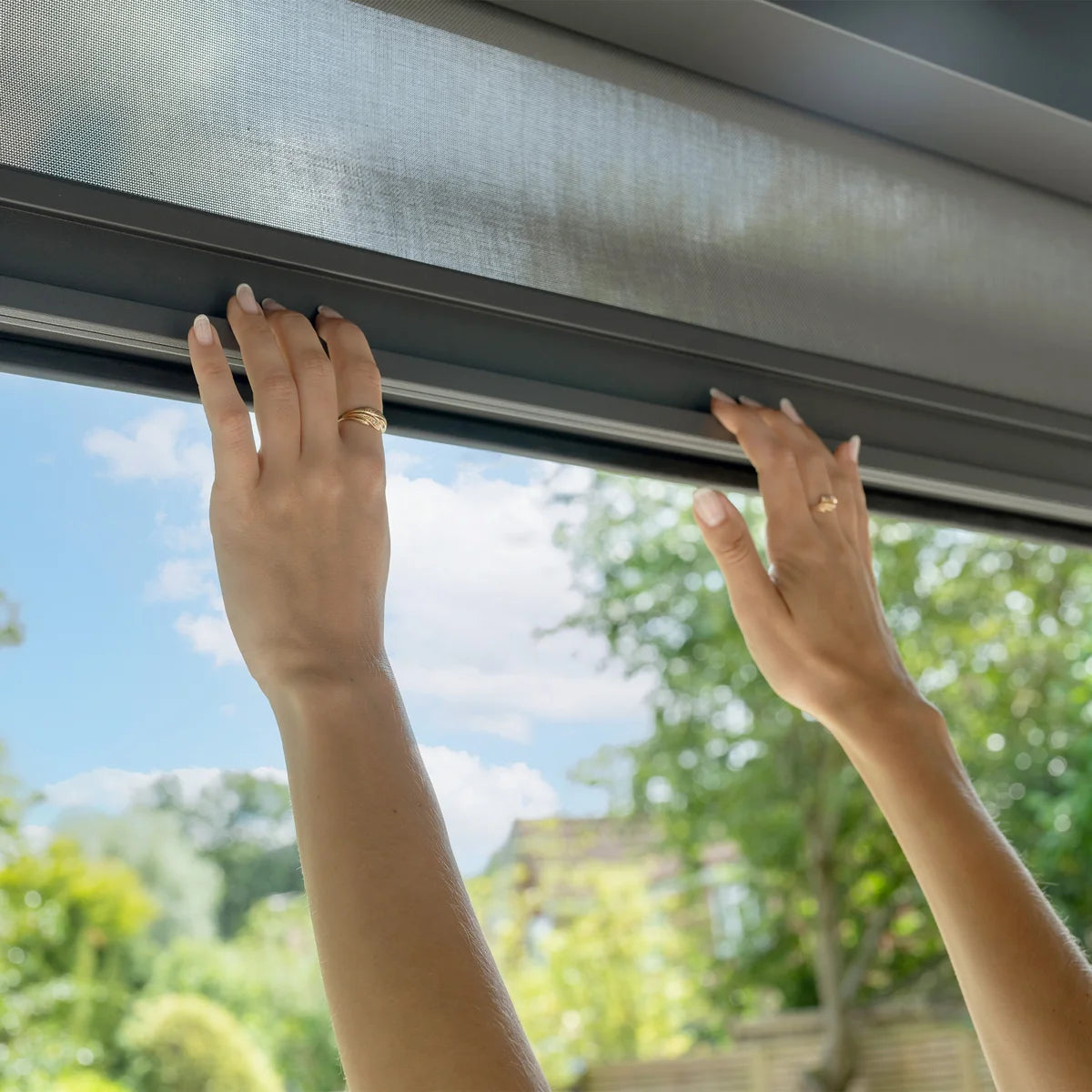

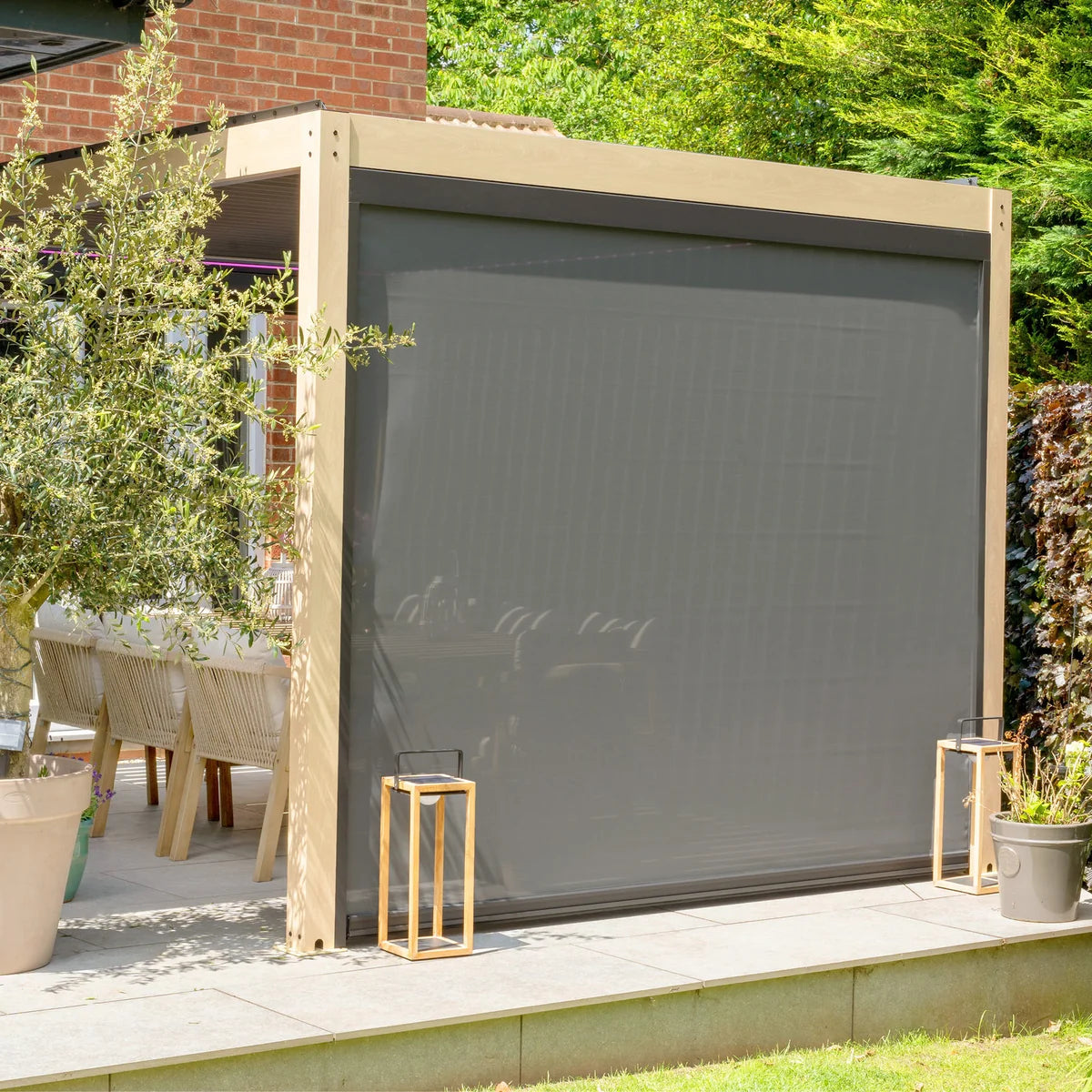

• 3 Inset Textilene Side Blinds: Built directly into the core support beams to resist drafts and handle crosswinds without flapping or jamming.

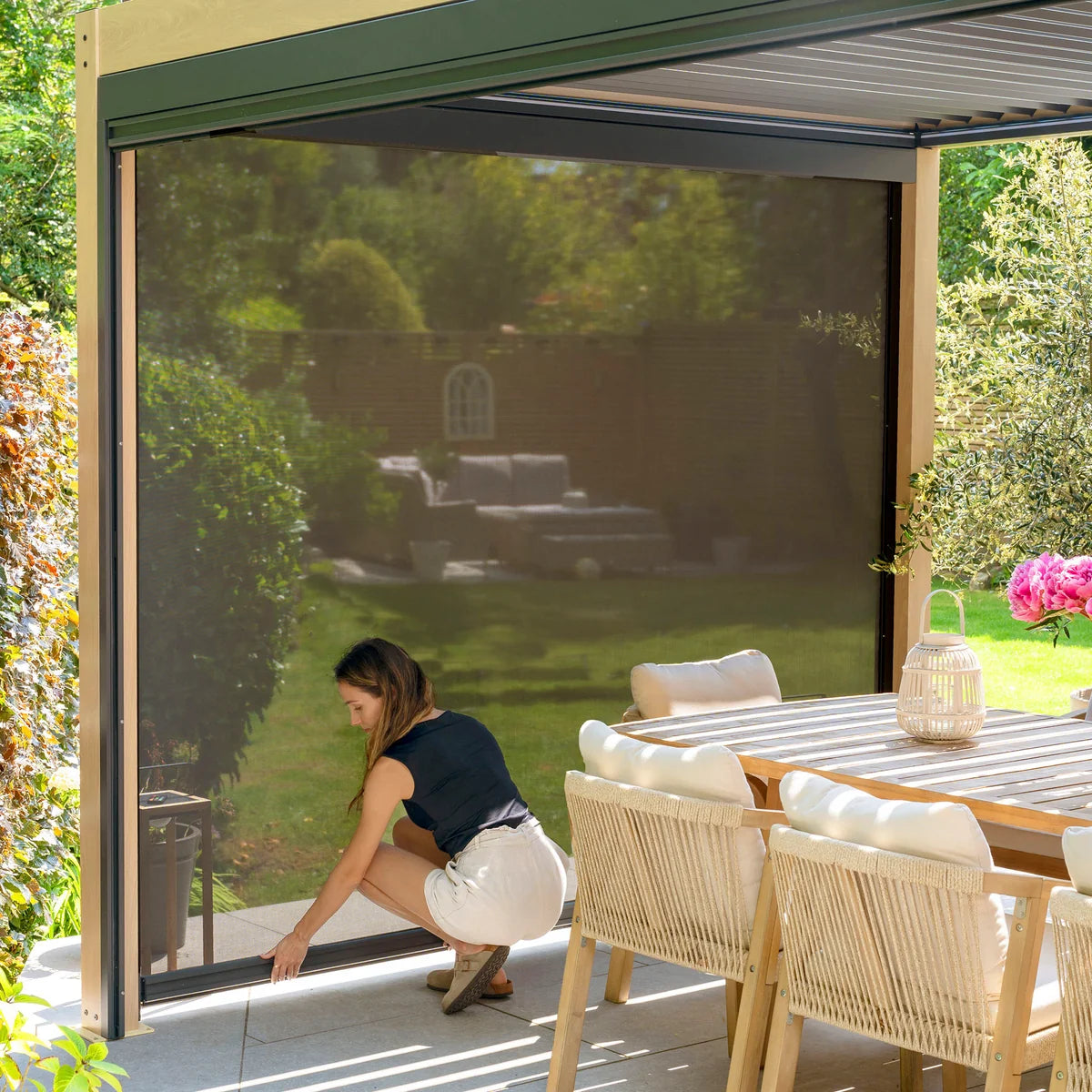

• Heat-Sealed Bottom Rims: Precision manufacturing seals the lower edge of the drop sides to prevent fabric fraying and protect structural wear longevity.
• Concealed U-Channel Drainage: Directs rainwater internally through the horizontal framework and post legs to prevent overhead pooling.
• Multi-Colour RGB LED Trim: Custom perimeter mood lighting array features full wireless remote operation and dimmable brightness parameters.

What’s Included

• 1x 3m x 3m PergoSTET Plus Aluminum Frame (Premium Wood Effect Finish)
• 1x Complete Tilting Double-Layered Louvre Roof Panel Set
• 1x Manual Crank Handle Mechanism
• 3x Textilene Integrated Drop Side Privacy Blinds
• 1x LED Mood Lighting Strip Kit (4x Perimeter Strips, 1x RGB Controller, 1x Extension Cable)
• 1x Low-Voltage Mains Powered Transformer Component
• 1x Multi-Function Wireless Remote Control
• 1x Complete Ground Fixing Anchor Bolt Structural Kit

Specifications

• Material Composition: High-Grade Structural Aluminum
• Colour Finish: Architectural Wood Effect
• Powder Coating Shield: Genuine Tiger Drylac® Coating
• Structural Profile Shape: Square
• Roof Control Mechanism: Manual Hand Crank Handle
• Tilt Functionality Direction: 90° Clockwise Rotation (Facing Crank Position)
• Fixing Base Type: Bolted Anchor Footplates
• Power Supply Requirements: Mains Powered Transformer (Requires 240V Input Socket)
• Operating Voltage Profile: Safe 24V Low-Voltage Output
• Electrical Power Wattage Draw: 150W System Total
• Waterproof Classification: Certified IP68 Weatherproof Elements
• Bulb Integration Style: High-Performance RGB LED Strips

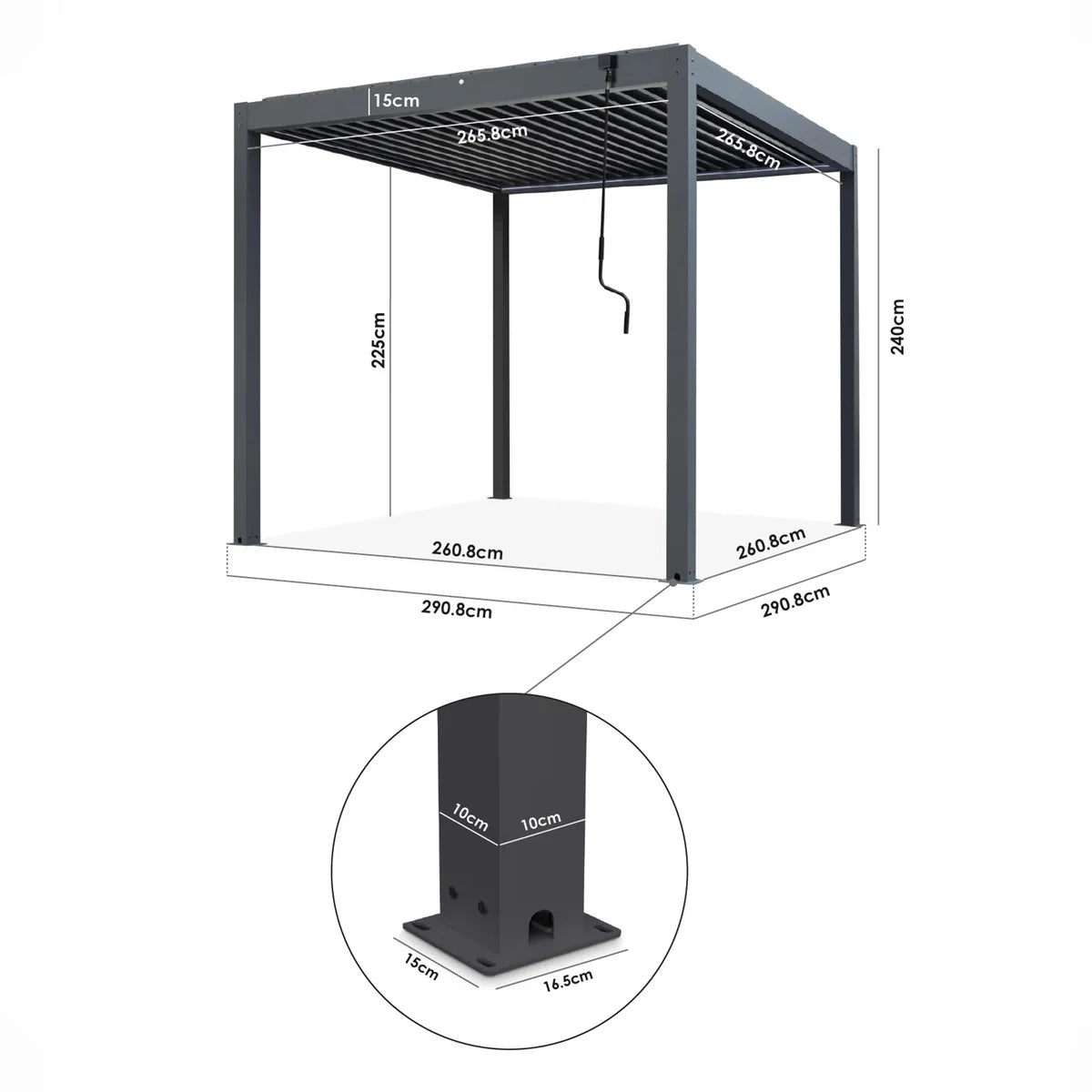

• External Width (Total Footprint): 291.4cm
• External Depth (Total Footprint): 293cm
• External Height (Total Post Limit): 240cm
• Internal Clear Width Post-to-Post: 260.8cm
• Internal Clear Depth Post-to-Post: 260.8cm
• Internal Clearance Height: 225cm
• Post Dimensions Profile: H240cm
• Louvre Strip Dimensions Profile: W274.2cm

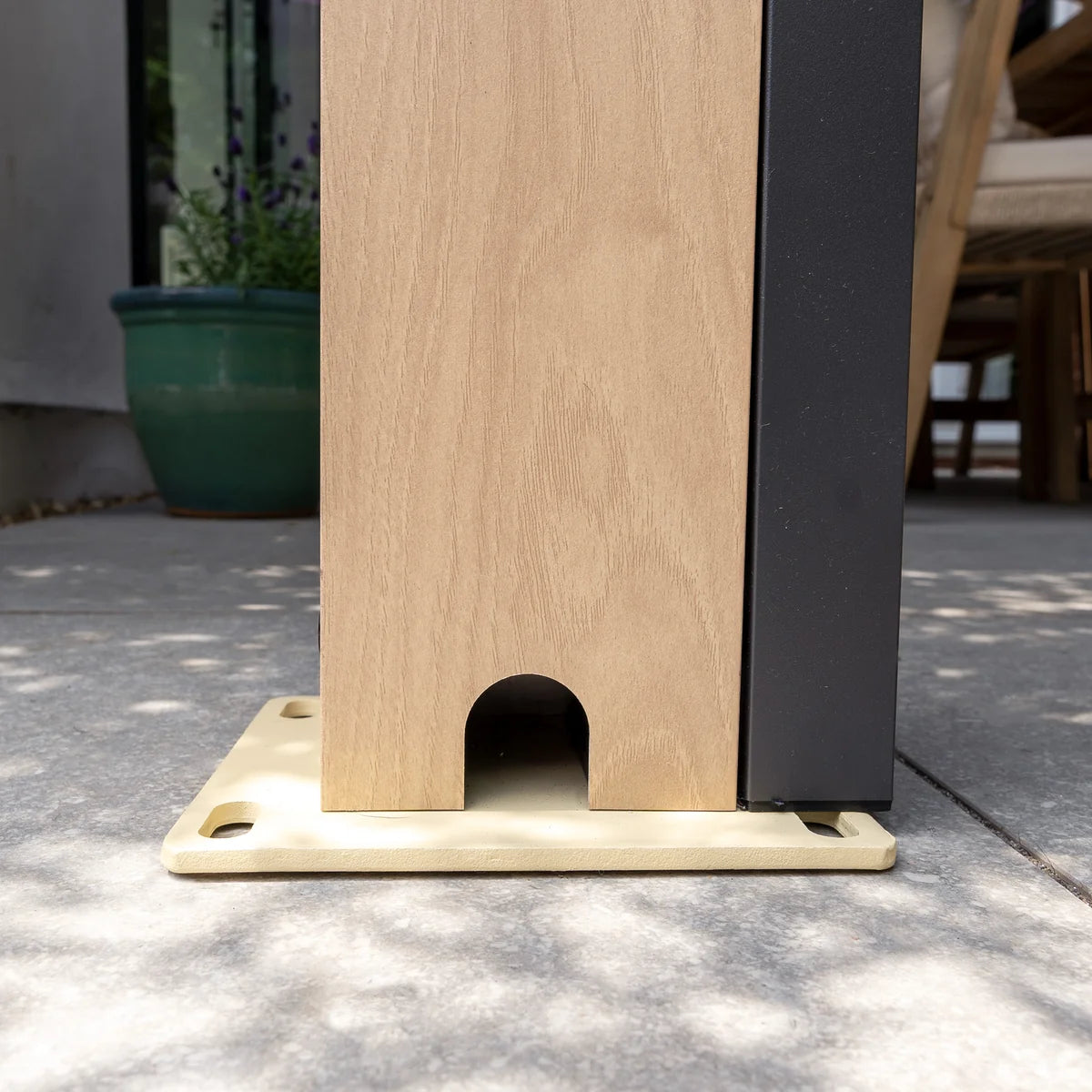

• Footplate Dimensions Base: W16.5cm x D15cm
• Hand Crank Length Parameter: W121cm

Carton Details & Packaging Breakdown

• Box 1: W299cm x D24.5cm x H21.5cm (Gross Weight: 40kg)
• Box 2: W291cm x D31cm x H30cm (Gross Weight: 31kg)
• Box 3: W291cm x D31cm x H30cm (Gross Weight: 31.3kg)
• Box 4: W256.5cm x D27cm x H24cm (Gross Weight: 42kg)
• Box 5: W293cm x D17cm x H22cm (Gross Weight: 42kg)
• Box 6: W293cm x D17cm x H22cm (Gross Weight: 42kg)
• Box 7: W293cm x D17cm x H22cm (Gross Weight: 42kg)

Compatibility & Installation Safety Guidelines

• Full Enclosure Customisation: Fully compatible with additional PergoSTET Deluxe blinds, allowing you to seamlessly purchase and mount hardware to fully enclose all 4 open side frames.
• All-Weather Protection Boundaries: While highly wind-resistant and protective, pergolas operate as open outdoor structures rather than hermetically sealed buildings. During exceptional UK torrential storms, heavy volumes may temporarily exceed the internal vertical drainage capacity, resulting in minor runoff overflow similar to residential roof guttering networks.
• High Wind Action Protocols: During severe storm warnings or high-velocity gales, we strongly recommend rolling all textilene side blinds fully up to protect the structural channels. In extreme weather, keep the double-layer louvred roof set to a fully open status to minimize wind lift force.
• Level Ground Requirement: Must be anchored onto stable, solid, level ground surfaces for the internal guttering to flow properly. Standard 1:80 surface slopes on stone patios are completely acceptable. Steeper fall angles will disrupt channel tracking and void warranties.

Optional Accessories (Available Separately)

• PergoSTET Deluxe Replacement Side Blinds: Premium drop screens to fully box in your structural grid layout.
• High-Output Multi-Zone Beam Heaters: Mount seamlessly to horizontal beams to lock in warmth across your seating zone.

Warranty

• 3-Year Frame Guarantee: Fully covers the main architectural aluminum framework profiles against core material defects and manufacturing flaws.
• 1-Year Component Guarantee: Provides dedicated coverage for the motorized RGB LED strip channels, louvre crank systems, and textilene blind fabrics.
