PergoSTET Plus 3x3m Aluminum Pergola with LED Lights & 3 Manual Blinds - Latte

Introduce an unmatched level of modern elegance to your outdoor living space with a sophisticated architectural statement. The PergoSTET Plus 3m x 3m Square Pergola is an award-winning, premium bioclimatic shelter meticulously engineered to upgrade high-end UK patios and garden terraces. Finished in a highly unique, luxurious Latte powder coating, this structure delivers high-performance weather adaptability, allowing you to transition effortlessly from sunny afternoon hosting to comfortable, rain-protected evening dining.

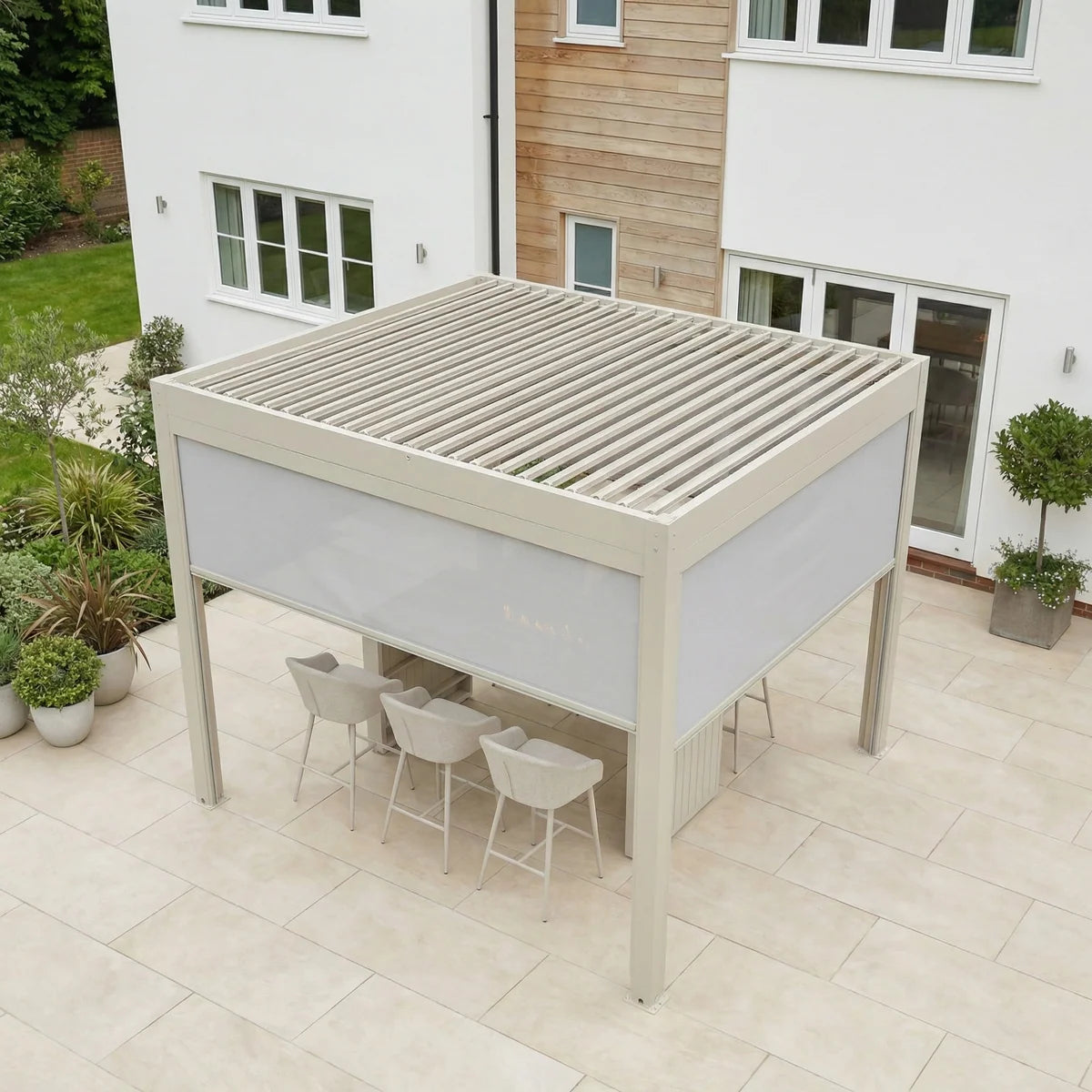

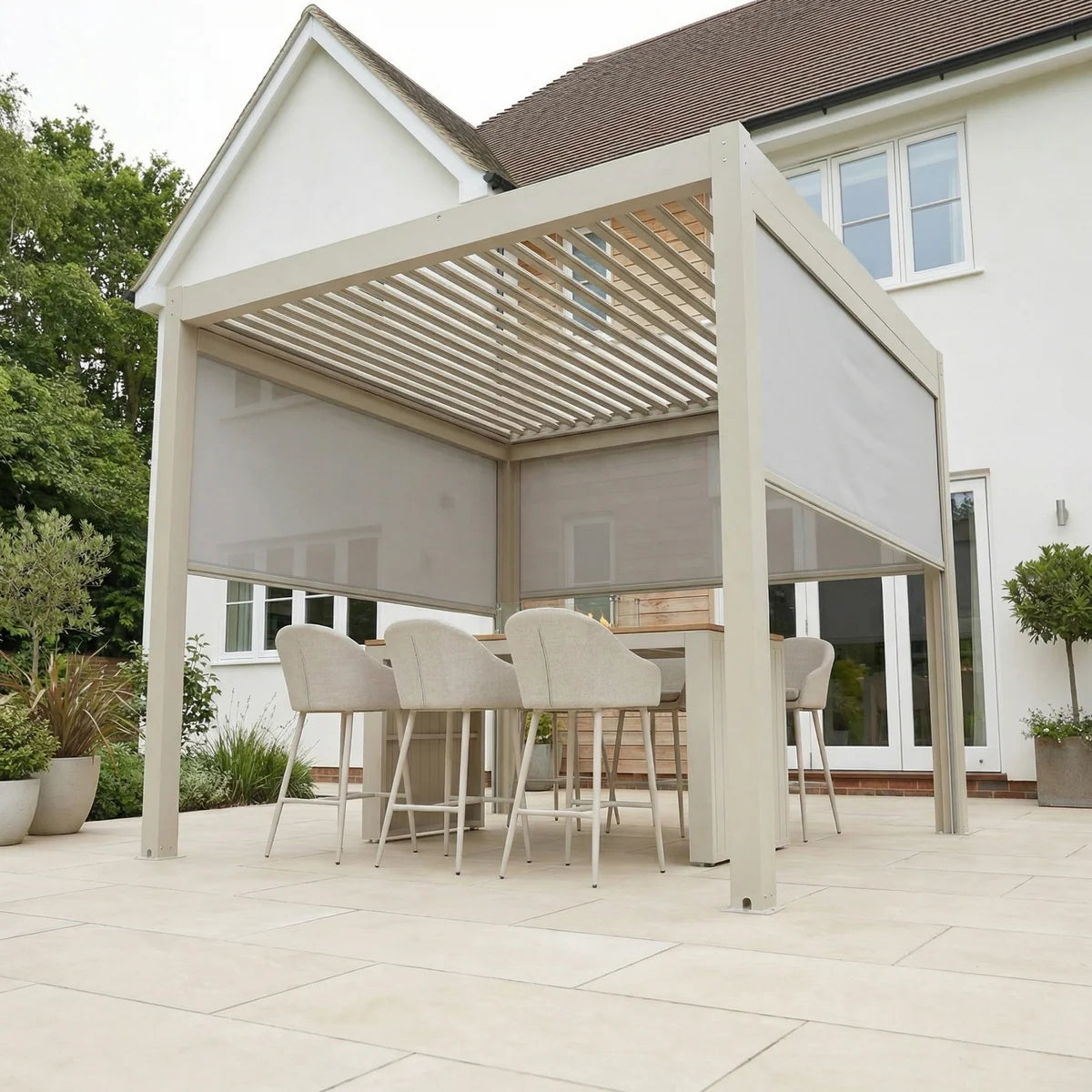

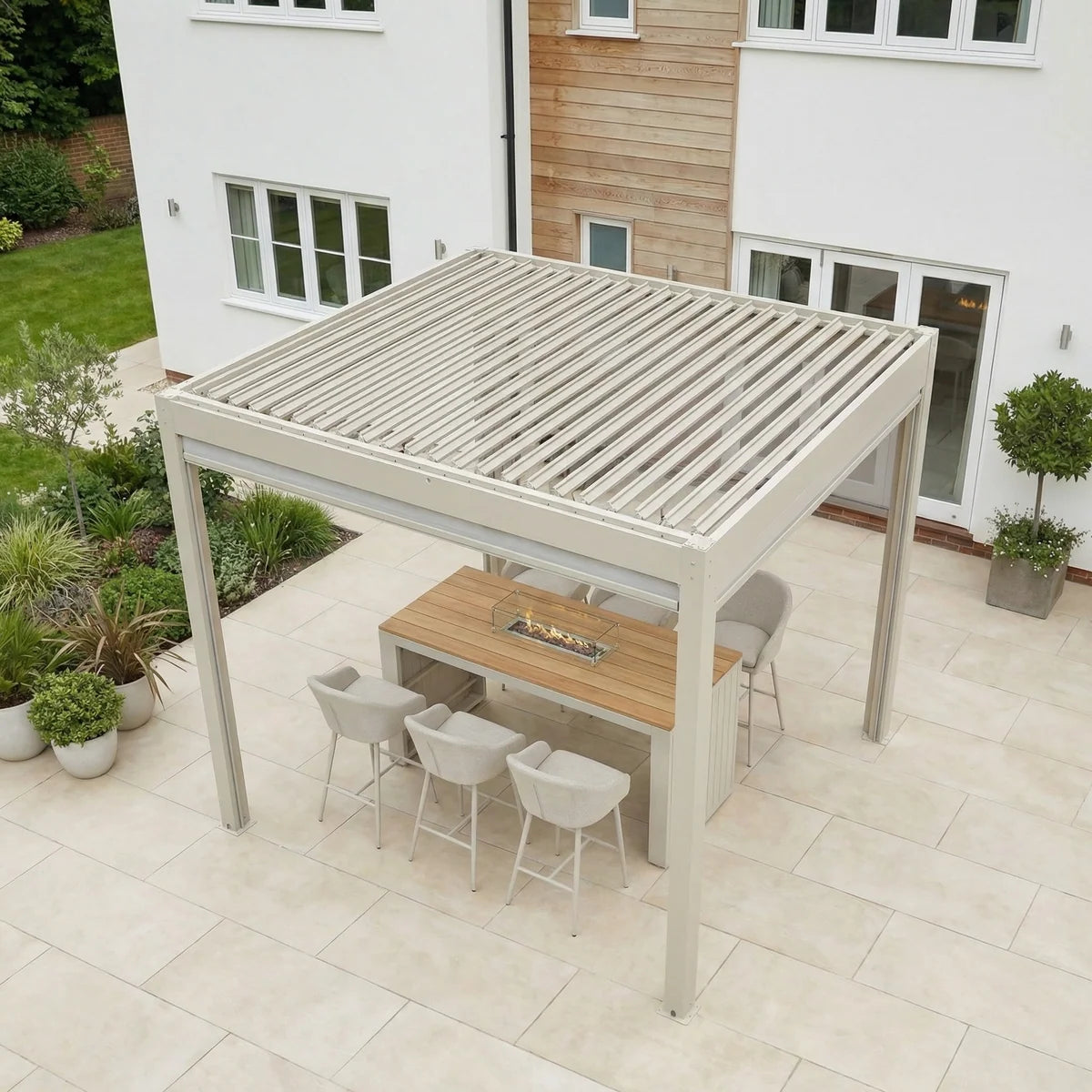

Bioclimatic Double-Layered Tilting Louvres

Take complete control over changing seasonal shifts using the heavy-duty manual crank handle system. The double-layered aluminum louvres rotate smoothly up to 90 degrees clockwise, letting you open the roof completely to welcome the summer afternoon sunshine or seal it flat into a fully waterproof canopy when sudden rain sets in. This premium layout balances precise shade ventilation with reliable overhead protection, making it an essential choice for year-round terrace use.

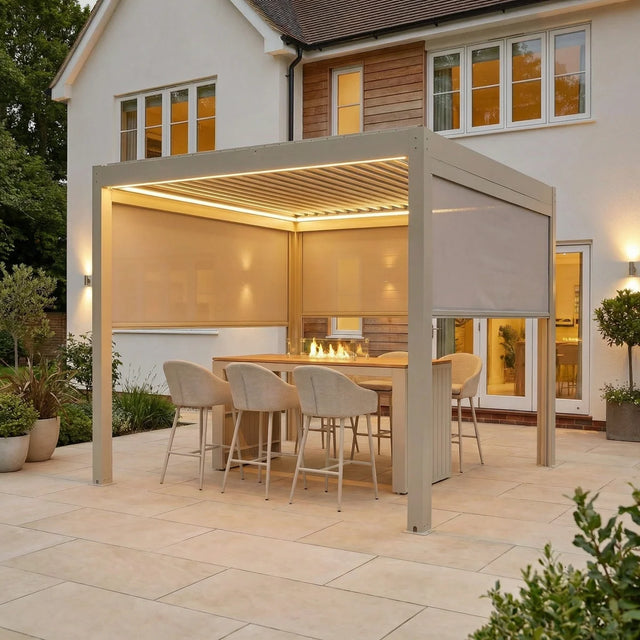

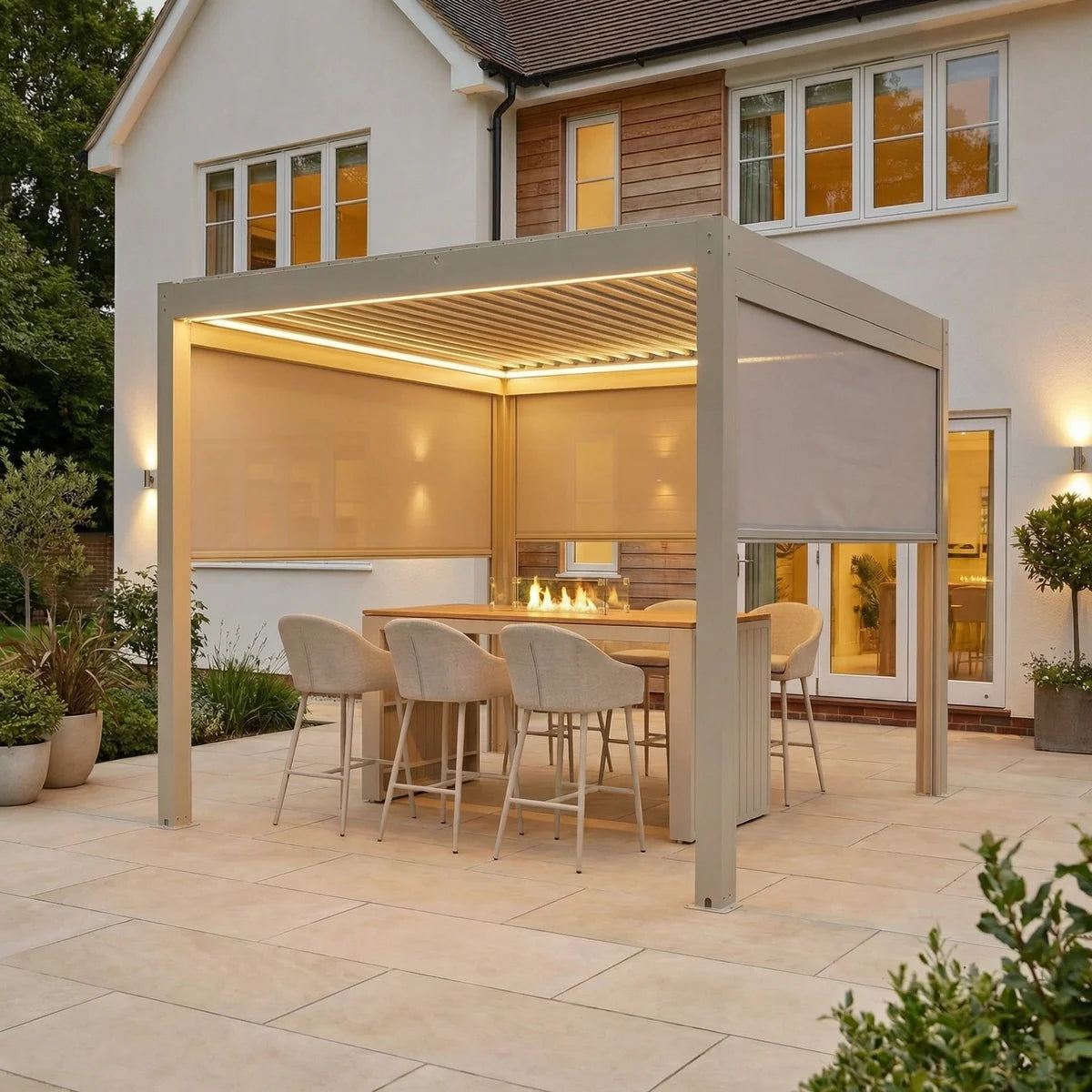

Immersive Multi-Colour Remote-Controlled LEDs

Transform your outdoor patio layout into an immersive evening entertainment zone as daylight fades. Fitted cleanly along the interior perimeter of the gutter framework, the built-in LED mood lighting strips offer a striking array of multiple colors. Controlled entirely via a wireless remote control handset, the integrated system features fluid dimming parameters that allow you to seamlessly adjust the brightness to set the perfect atmosphere for your guests.

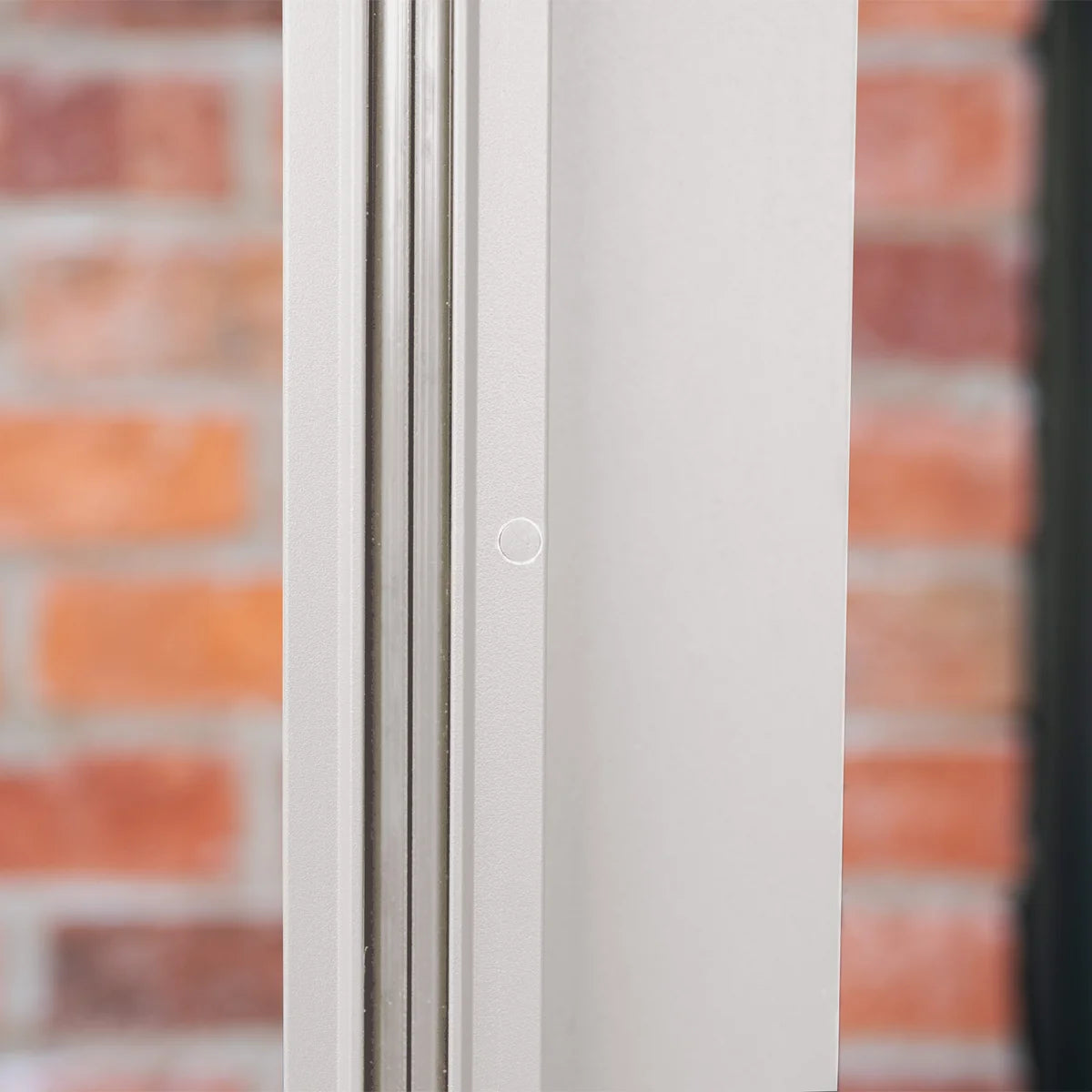

Concealed High-Flow Gutter Drainage Network

Relax through heavy downpours with an incredibly intelligent U-shaped channel drainage network built straight into the core frame. Rainwater catching on the closed double-layer louvres flows cleanly into integrated perimeter channels, directing the excess volume laterally into the horizontal framework and down through the structural vertical post legs to exit invisibly at ground level. This self-contained setup keeps your outdoor kitchen island or dining set dry, preventing dangerous top surface pooling.

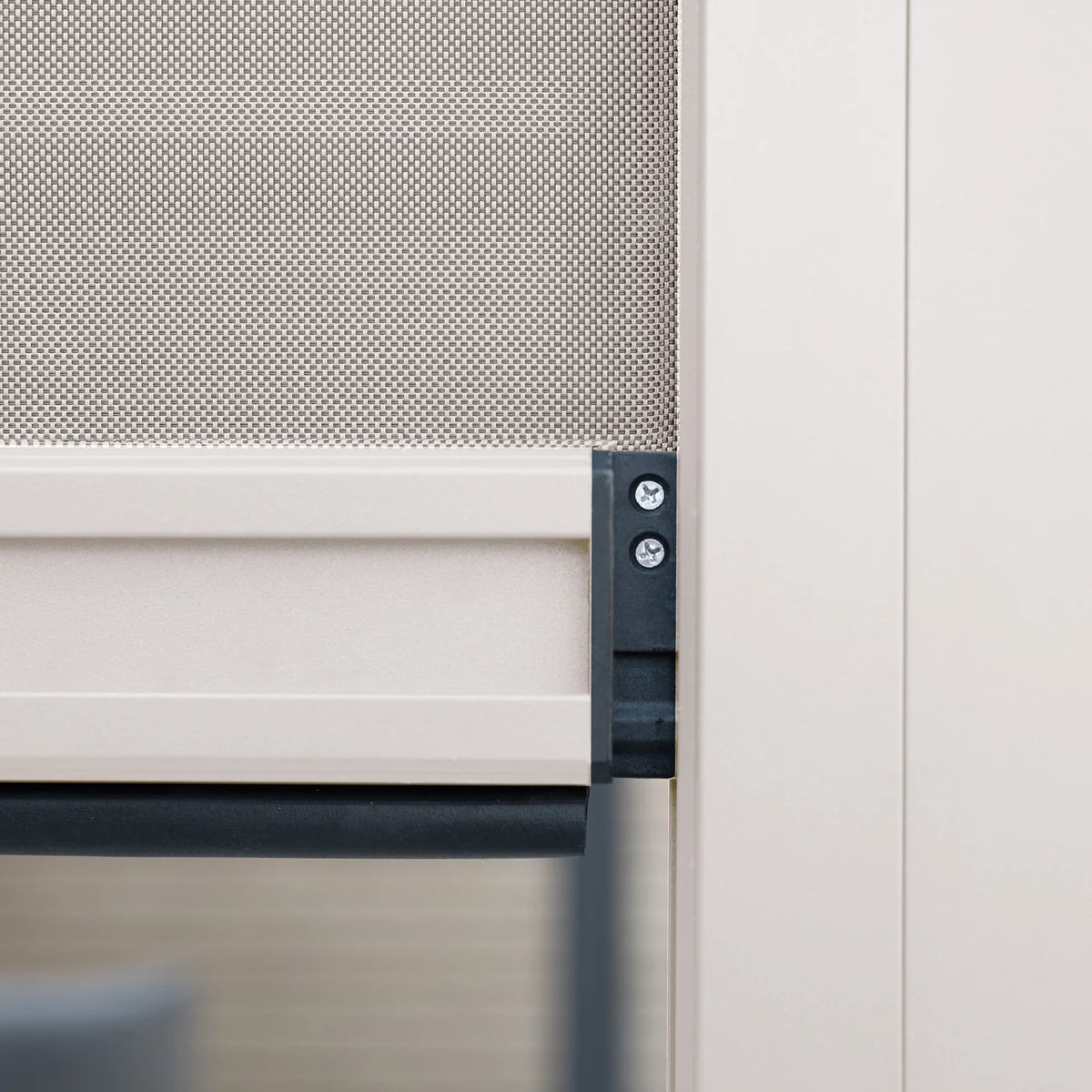

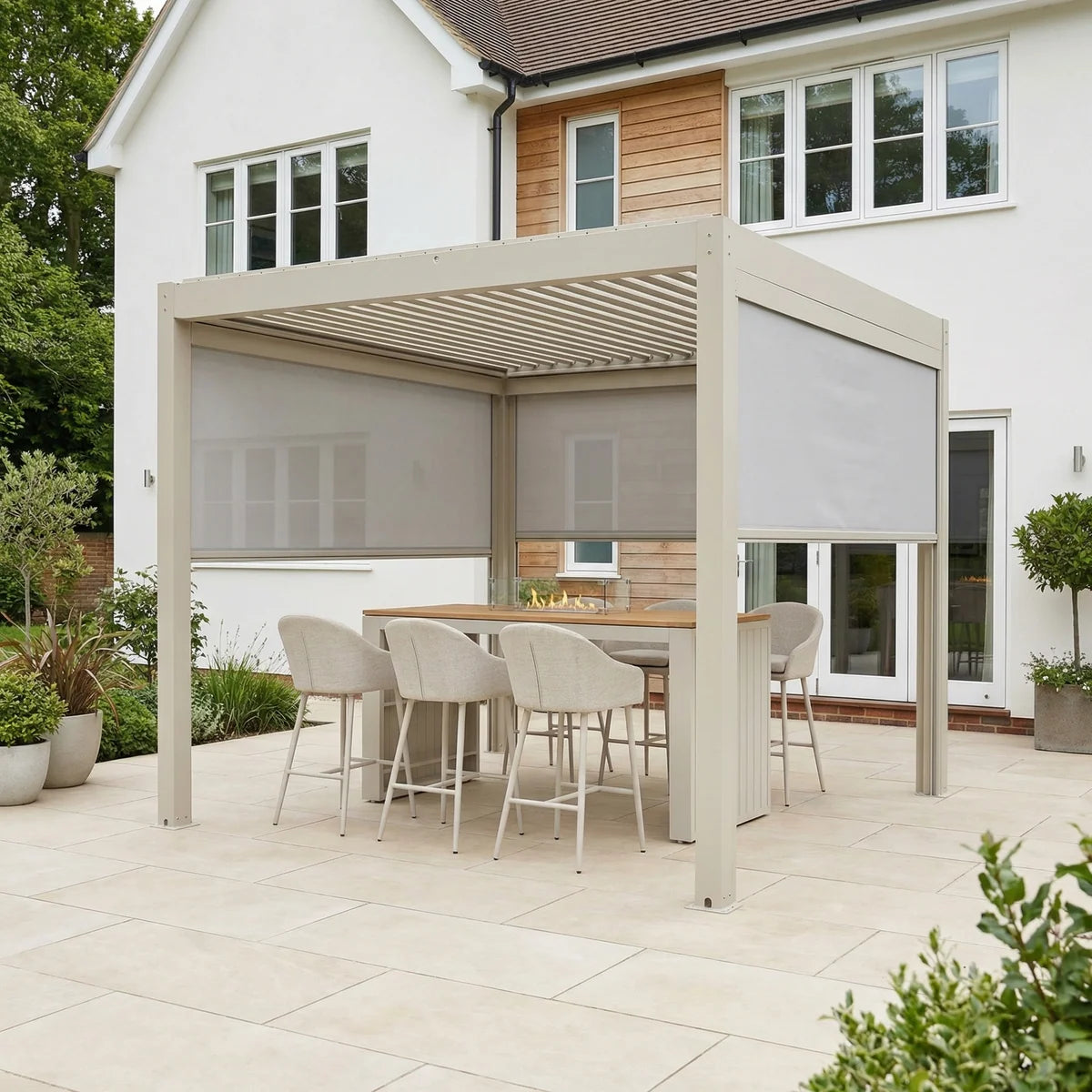

Integrated Heat-Sealed Privacy Blinds

Shield your lounge area from cooling drafts, crosswinds, and low-angle sun glare with three built-in manual side blinds. Woven from premium, heavy-duty textilene fabric, these luxury screens are inset deeply within the core aluminum framework to provide maximum resistance against wind resistance and horizontal rain. Unlike standard outdoor curtains that fray over time, these high-end blinds are strategically heat-sealed at the bottom rim to protect the structural integrity of the weave, ensuring a pristine finish and long-lasting durability.

Key Features

• Premium Latte Powder Coating: Distinctive RAL 7044 finish matches high-end contemporary design themes while offering elite rust and scratch protection.
• 90-Degree Manual Tilting Louvres: Quick-adjust double-layered ceiling canopy switches effortlessly between open sun tracking and a closed waterproof roof shield.
• 3 Inset Textilene Side Blinds: Built directly into the core support beams to resist drafts and handle crosswinds without flapping or jamming.

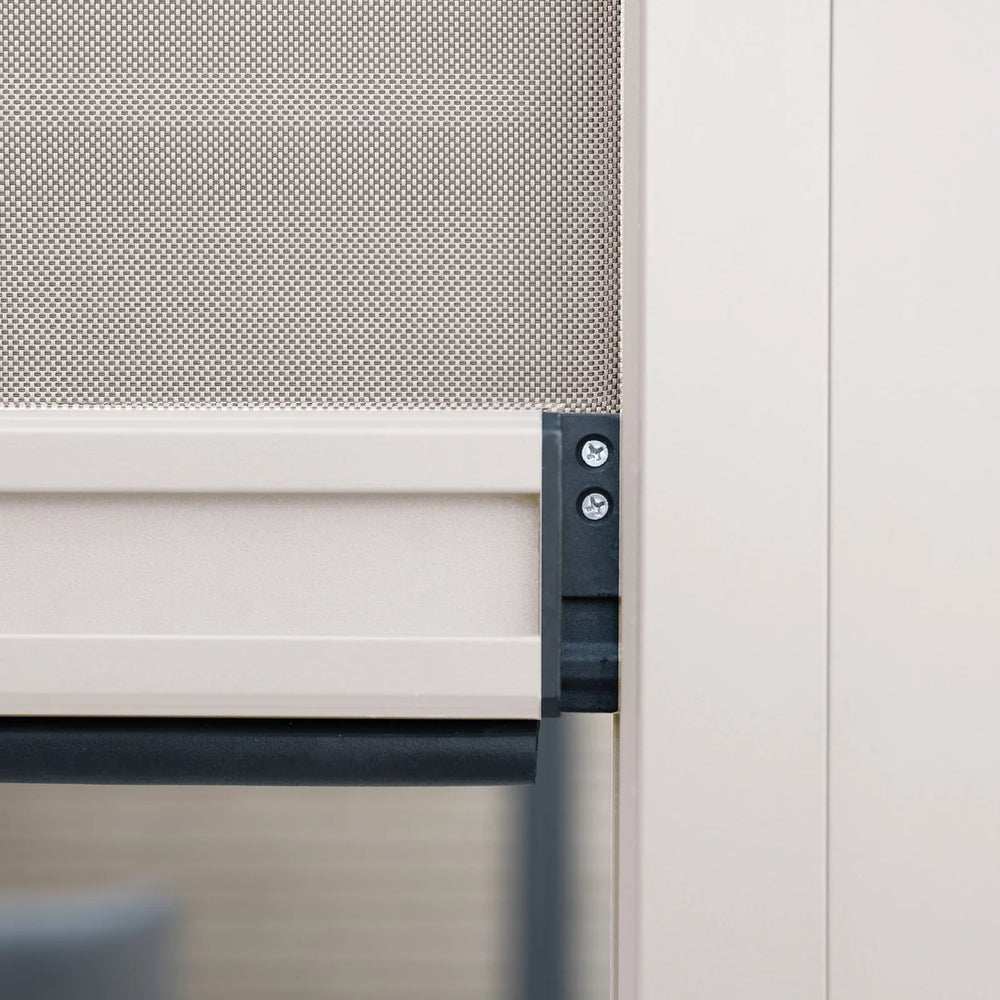

• Heat-Sealed Bottom Rims: Precision manufacturing seals the lower edge of the drop sides to prevent fabric fraying and protect structural wear longevity.
• Concealed U-Channel Drainage: Directs rainwater internally through the horizontal framework and post legs to prevent overhead pooling.
• Multi-Colour RGB LED Trim: Custom perimeter mood lighting array features full wireless remote operation and dimmable brightness parameters.
• Tiger Drylac® Powder Coating: Applied directly to the heavy-duty aluminum chassis to secure absolute rot, rust, and UV fade resistance.

What’s Included

• 1x 3m x 3m PergoSTET Plus Aluminum Frame (Premium Latte Finish)
• 1x Complete Tilting Double-Layered Louvre Roof Panel Set
• 1x Manual Crank Handle Mechanism
• 3x Textilene Integrated Drop Side Privacy Blinds
• 1x LED Mood Lighting Strip Kit (4x Perimeter Strips, 1x RGB Controller, 1x Extension Cable)
• 1x Low-Voltage Mains Powered Transformer Component
• 1x Multi-Function Wireless Remote Control
• 1x Complete Ground Fixing Anchor Bolt Structural Kit

Specifications

• SKU: HL-PER-LAT-33
• Material Composition: High-Grade Structural Aluminum
• Colour Finish: Latte
• RAL Code: 7044
• Powder Coating Shield: Genuine Tiger Drylac® Powder Coating
• Structural Profile Shape: Square
• Roof Control Mechanism: Manual Crank Handle
• Tilt Functionality Direction: 90° Clockwise Rotation (Facing Crank Position)
• Fixing Base Type: Bolted Anchor Footplates
• Power Supply Requirements: Mains Powered Transformer
• Cable Length: 4 Meters
• Operating Voltage Profile: Safe 24V Low-Voltage Output
• Electrical Power Wattage Draw: 150W
• Waterproof Classification: Certified IP68 Weatherproof Elements
• Bulb Integration Style: LED
• Light Bulb Colour: Multi-colour
• External Width (Total Footprint): 291.4cm
• External Depth (Total Footprint): 293cm
• External Height (Total Post Limit): 240cm
• Internal Clear Width Post-to-Post: 260.8cm
• Internal Clear Depth Post-to-Post: 260.8cm
• Internal Clearance Height: 225cm
• Post Dimensions Profile: H240cm
• Louvre Strip Dimensions Profile: W274.2cm
• Footplate Dimensions Base: W16.5cm x D15cm
• Hand Crank Length Parameter: W121cm

Carton Details & Packaging Breakdown

• Box 1: W299cm x D24.5cm x H21.5cm | 40kg
• Box 2: W291cm x D31cm x H30cm | 31kg
• Box 3: W291cm x D31cm x H30cm | 31.3kg
• Box 4: W256.5cm x D27cm x H24cm | 42kg
• Box 5 (x3): W293cm x D17cm x H22cm | 42kg

Compatibility & Installation Safety Guidelines

• Full Enclosure Customisation: Fully compatible with additional PergoSTET Deluxe blinds, allowing you to seamlessly purchase and mount hardware to fully enclose the fourth open side frame.
• All-Weather Protection Boundaries: While highly wind-resistant and protective, pergolas operate as open outdoor structures rather than hermetically sealed buildings. During exceptional UK torrential storms, heavy volumes may briefly exceed the internal vertical drainage capacity, resulting in minor runoff overflow similar to residential roof guttering networks.
• High Wind Action Protocols: During severe storm warnings or high-velocity gales, we strongly recommend rolling all textilene side blinds fully up to protect the structural channels. In extreme weather, keep the double-layer louvred roof set to a fully open status to minimize wind lift force.
• Level Ground Requirement: Must be anchored onto stable, solid, level ground surfaces for the internal guttering to flow properly. Standard 1:80 surface slopes on stone patios are completely acceptable. Steeper fall angles will disrupt channel tracking and void warranties.

Optional Accessories (Available Separately)

• PergoSTET Deluxe Replacement Side Blinds: Premium drop screens to fully box in your structural grid layout.
• High-Output Multi-Zone Beam Heaters: Mount seamlessly to horizontal beams to lock in warmth across your seating zone.

Warranty

• 3-Year Frame Guarantee: Fully covers the main architectural aluminum framework profiles against core material defects and manufacturing flaws.
• 1-Year Component Guarantee: Provides dedicated coverage for the motorized RGB LED strip channels, louvre crank systems, and textilene blind fabrics.
